LED Area/Shoebox Light

Watt Selectable

Photocell

Motion Censor

Clear

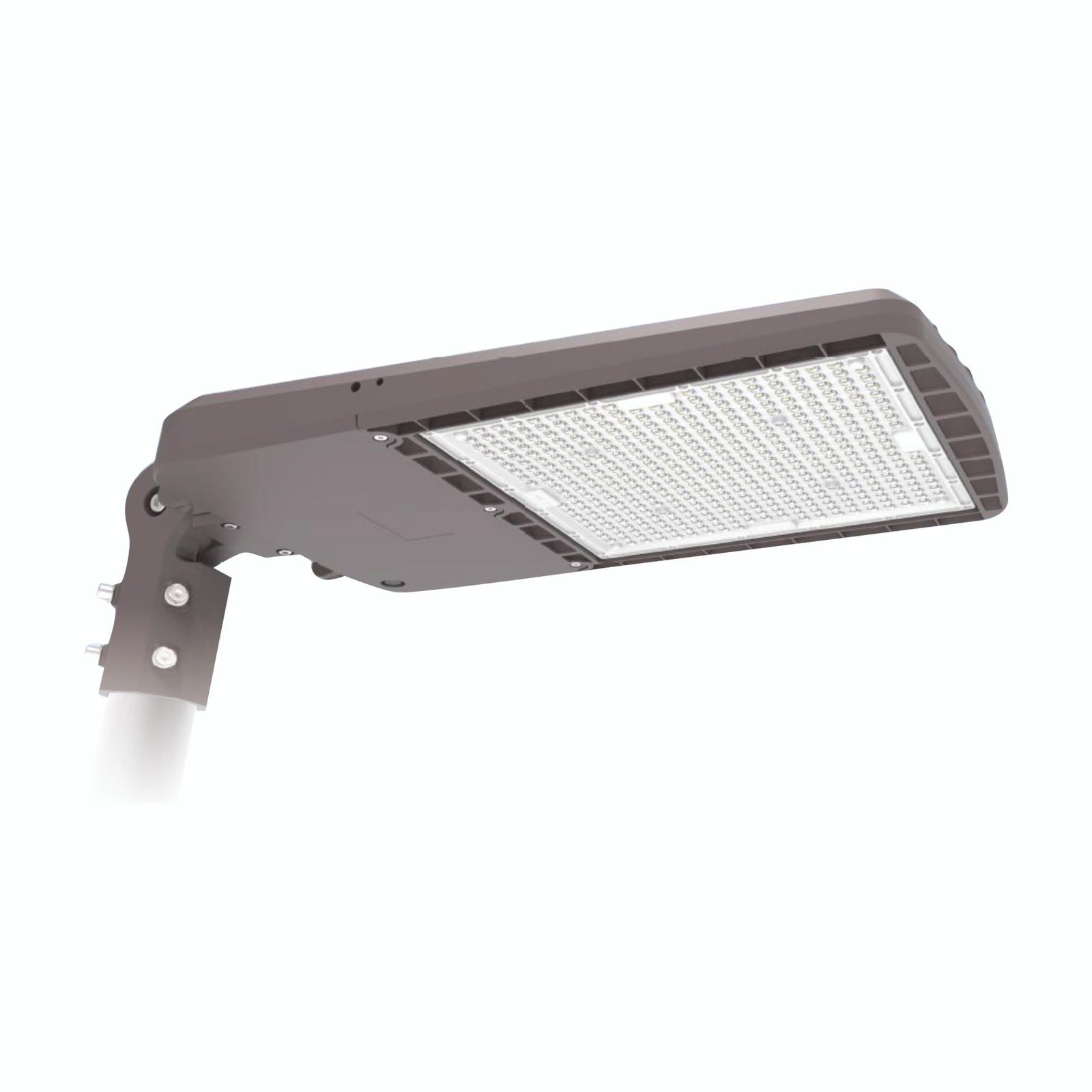

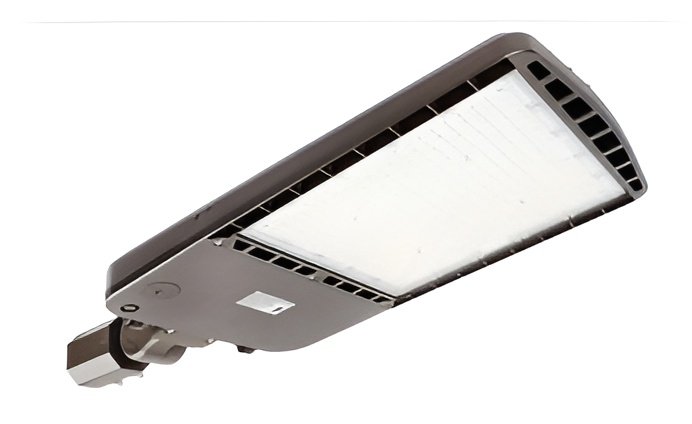

LED Shoebox-Style Area Lighting Fixture

LED Area Light is a versatile and customizable solution for efficiently illuminating outdoor spaces. With three selectable wattage options, you can easily adjust brightness to meet your needs, optimizing both visibility and energy savings. This series also offers the flexibility to install a photocell or motion sensor for enhanced customization. Ideal for parking lots, pathways, and recreational areas, LED Area/Shoebox delivers durability, reliability, and superior performance. Upgrade today for improved illumination and safety in any outdoor setting.

LED Watt Selectable Area Light 5000K / DLC Premium

Certification

DLC LISTED PREMIUM
5 YEARS WARRANTY
UL CERTIFIED E502070
Ra>80

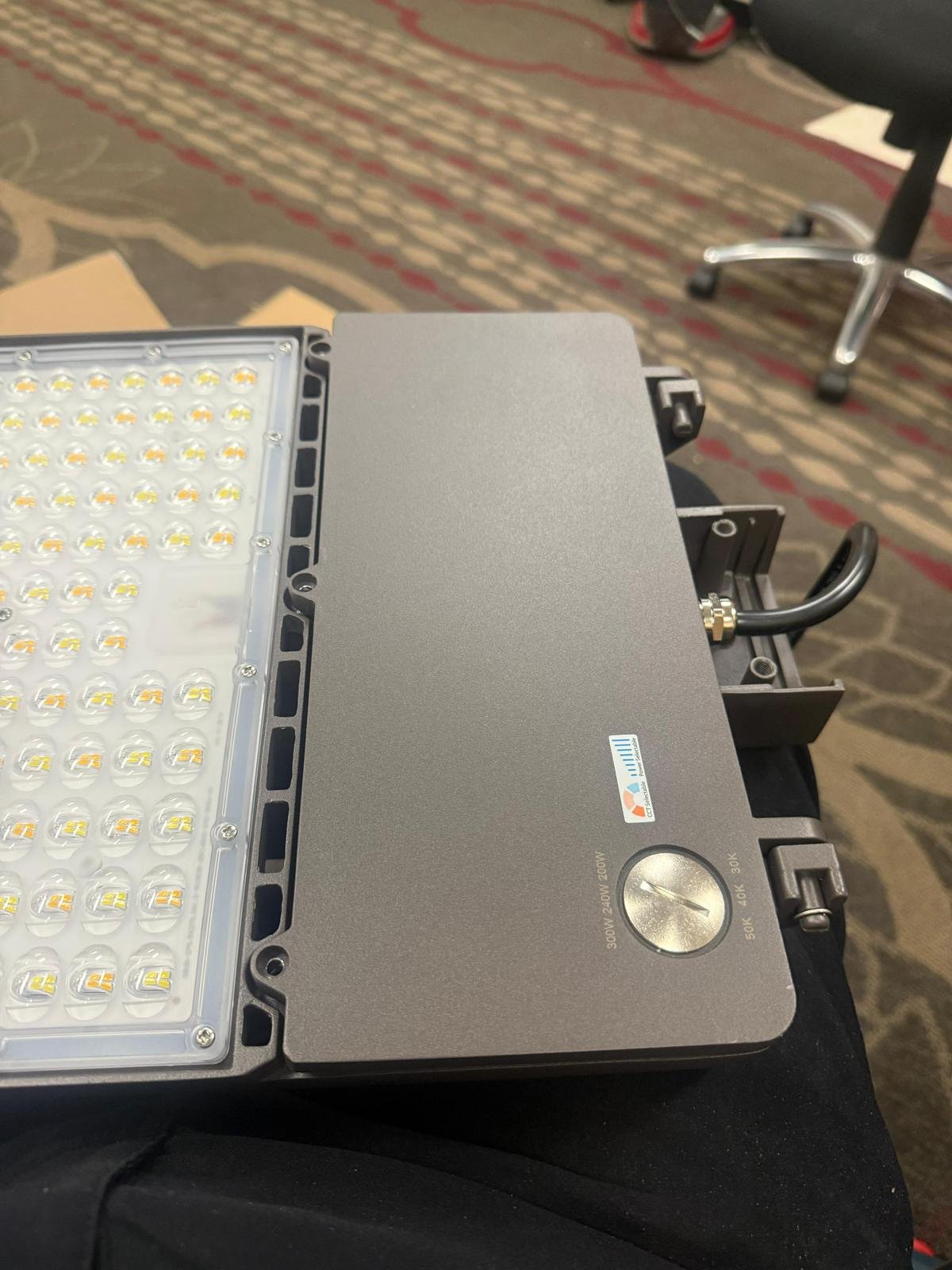

Watt Selectable
Dimmable
IP65
Flexible Feature

Specifications

MODEL	EST-AL02-150W-H3-50K-TW	EST-AL02-200W-H3-50K-TW	EST-AL02-300W-H3-50K-TW
WATTAGE	70W/100W/150W	100W/150W/200W	200W/240W/300W
INPUT CURRENT	1.65A Max	2.2A Max	3.3A Max
LUMEN OUTPUT	22007lm Max (DLC#5-X690CD)	26947lm Max (DLC#5-0QC2I2)	43360lm Max (DLC#5-JEVB01)
INPUT VOLTAGE	AC100-277V 50/60Hz	AC100-277V 50/60Hz	AC100-277V 50/60Hz
LIGHTING ANGLE	Type III	Type III	Type III
LIGHTING EFFICIENCY	130 Lm/W	130 Lm/W	130 Lm/W
COLOR RENDERING INDEX	Ra>80	Ra>80	Ra>80
WORKING TEMPERATURE	-40°F ~ +113°F / -40°C ~ +45°C	-40°F ~ +113°F / -40°C ~ +45°C	-40°F ~ +113°F / -40°C ~ +45°C
ENVIRONMENT LOCATION	WET LOCATIONS (IP65)	WET LOCATIONS (IP65)	WET LOCATIONS (IP65)
POWER FACTOR	> 0.9	> 0.9	> 0.9
LIFE SPAN	LUMEN MAINTENANCE over 70% 50,000+ Hours (5 year limited warranty)	LUMEN MAINTENANCE over 70% 50,000+ Hours (5 year limited warranty)	LUMEN MAINTENANCE over 70% 50,000+ Hours (5 year limited warranty)
LAMP SHELL	Dark Bronze	Dark Bronze	Dark Bronze
ACCESSORIES OPTION	PC: Photocontrol / MS: PIR Motion Sensor	PC: Photocontrol / MS: PIR Motion Sensor	PC: Photocontrol / MS: PIR Motion Sensor
