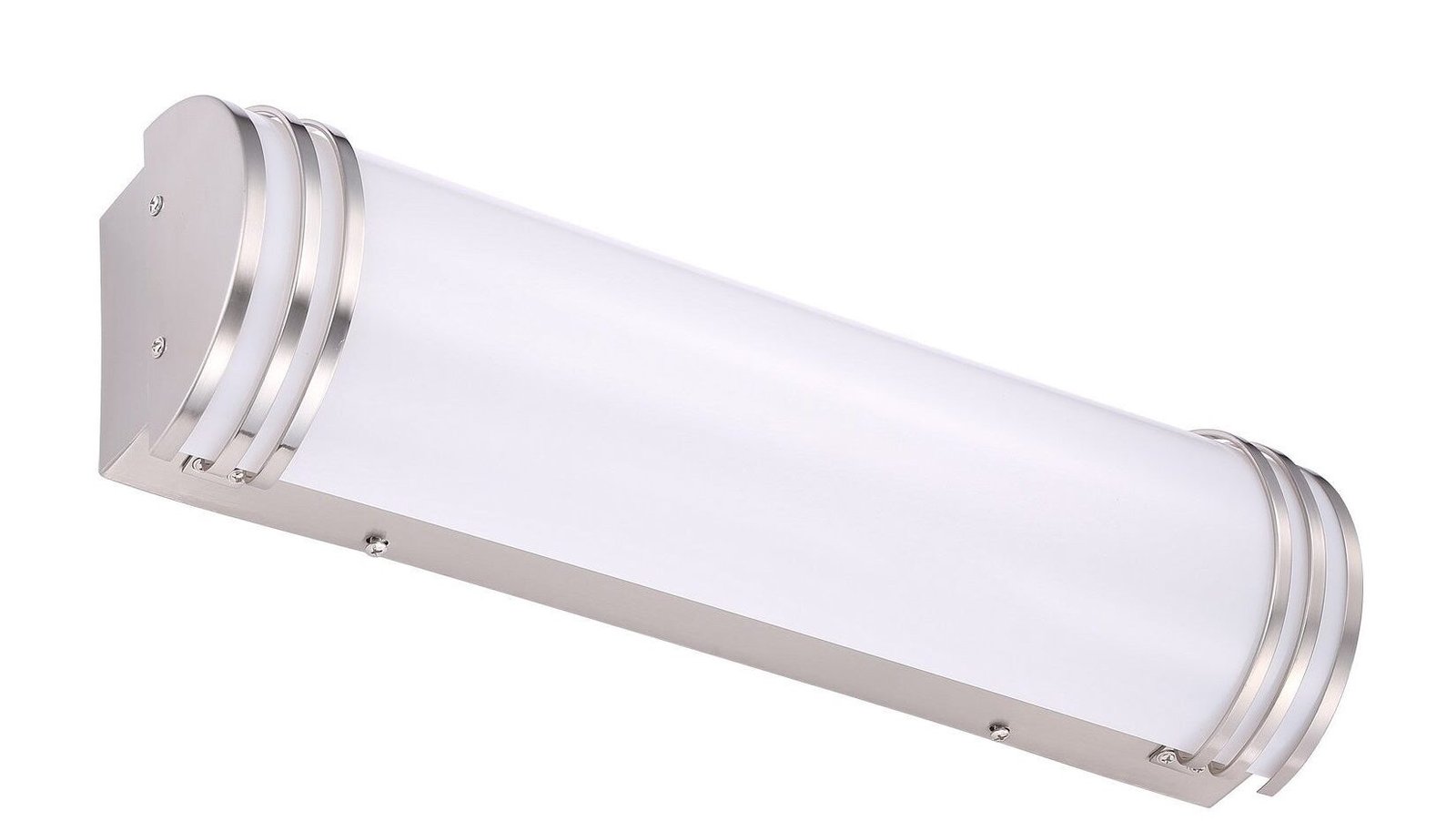

LED Bathroom Vanity Light | VL01 Series | Brushed Nickel | Half Cylindrical Design | CCT Tuneable 3000K/4000K/5000K | 0-10V Dimmable | ETL, Energy Star | Pack Of 4

LED Vanity Light for Bathroom

This Energy-Saving LED Vanity Linear Light Fixture offers a sleek, modern design with integrated LED modules for maintenance-free operation. Crafted with durable metal construction, it ensures long-lasting performance, while the opal acrylic shade provides a soft, elegant glow when illuminated. Perfect for bathroom vanities, this contemporary fixture combines style and efficiency to enhance any space with bright, energy-efficient lighting.

Feature:

• Damp Location Rated – Suitable for humid environments
• 5-Year Limited Warranty – Ensures long-term reliability
• Available in Three Sizes – 18″, 24″, and 36″ options
• CCT Selectable – Choose from 3000K, 4000K, or 5000K via dip switch
• Smooth Dimming – Adjust brightness from 10% to 100%
• Quick & Easy Installation – Designed for hassle-free setup


  SPECIFICATIONS

  Category	18” Model (EST-VL01-18IN20W-CCT-NK)	24” Model (EST-VL01-24IN25W-CCT-NK)	36” Model (EST-VL01-36IN30W-CCT-NK)

  Power

  20W

  25W

  30W

  Size

  18″

  24″

  36″

  Lumens

  1400 LM

  1750 LM

  2100 LM

  Max Input Current

  0.19A

  0.28A

  0.27A

  Input Voltage

  120V

  120V

  120V

  Housing

  Brushed Nickel + Opal Acrylic

  Brushed Nickel + Opal Acrylic

  Brushed Nickel + Opal Acrylic

  Dimming

  Triac Dimming (10%–100%)

  Triac Dimming (10%–100%)

  Triac Dimming (10%–100%)

  Protecting Rating

  IP20 (Indoor Use Only)

  IP20 (Indoor Use Only)

  IP20 (Indoor Use Only)

  Power Factor

  0.9+

  0.9+

  0.9+

  Beam Angle

  120°

  120°

  120°

  CCT

  3000K / 4000K / 5000K

  3000K / 4000K / 5000K

  3000K / 4000K / 5000K

  CRI

  80+

  80+

  80+

  Surge Protection

  DM/CM 1.25 kV / 1.25 kV

  DM/CM 1.25 kV / 1.25 kV

  DM/CM 1.25 kV / 1.25 kV

  Working Life

  Lumen Maintenance over 70% @ 50,000+ hrs

  Lumen Maintenance over 70% @ 50,000+ hrs

  Lumen Maintenance over 70% @ 50,000+ hrs

  Operating Temperature

  -4°F to 104°F (-20°C to 40°C)

  -4°F to 104°F (-20°C to 40°C)

  -4°F to 104°F (-20°C to 40°C)

  Qty/Package

  4

  4

  4

  Package Dimensions

  20.47 x 16.34 x 12.6 in

  27.17 x 16.34 x 12.6 in

  38.79 x 16.34 x 12.6 in

  Package Weight

  22.97 lb

  24.18 lb

  32.17 lb

Application:

• Ideal for Bathrooms – Provides bright and efficient lighting
• Multi-Purpose Design – Can also serve as a ceiling or surface mount light replacement
• Modern Aesthetic – Enhances any space with a sleek, contemporary look
