Key Features
Available in 90W – 320W power range
50,000 hours lifespan with 5-year warranty

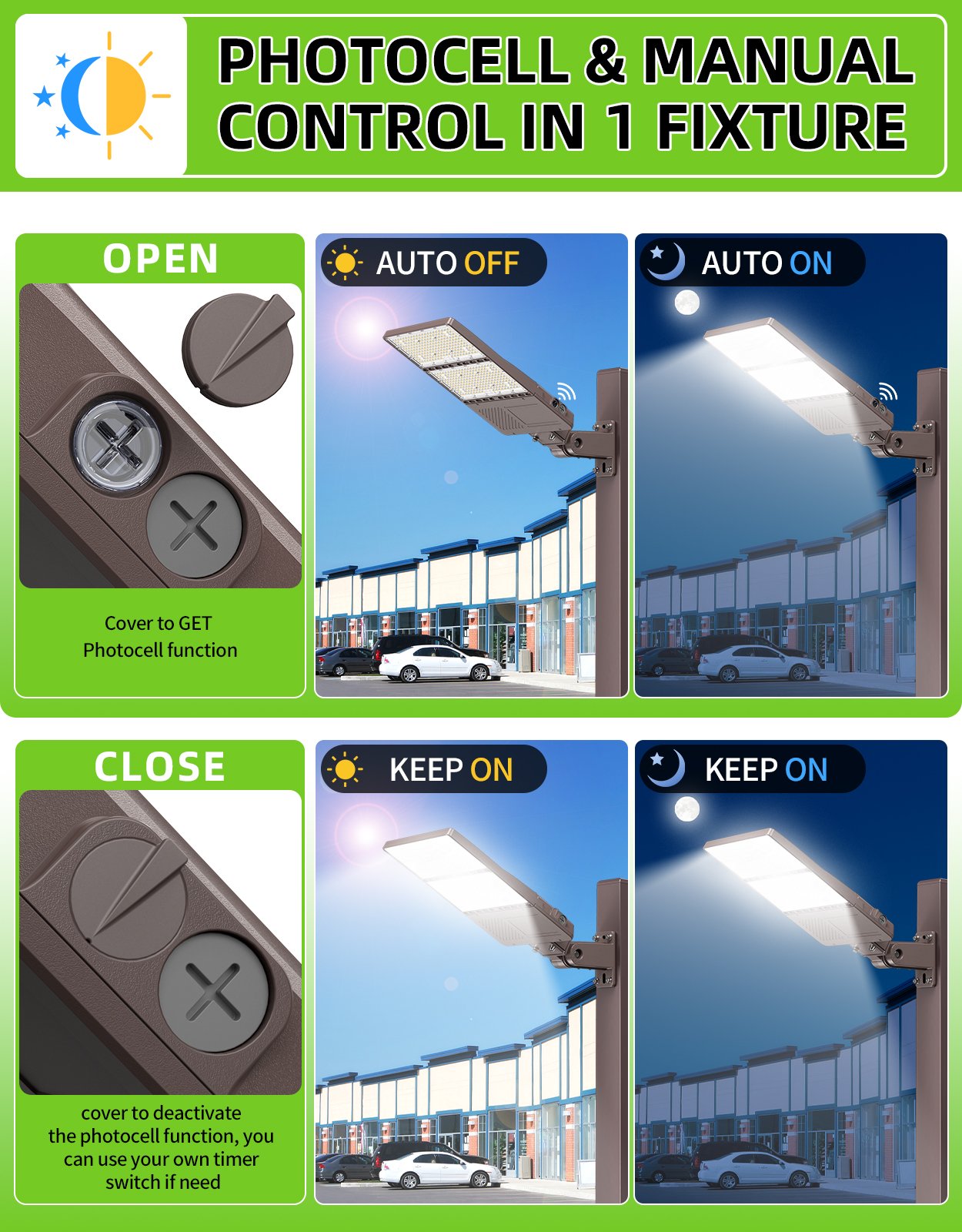

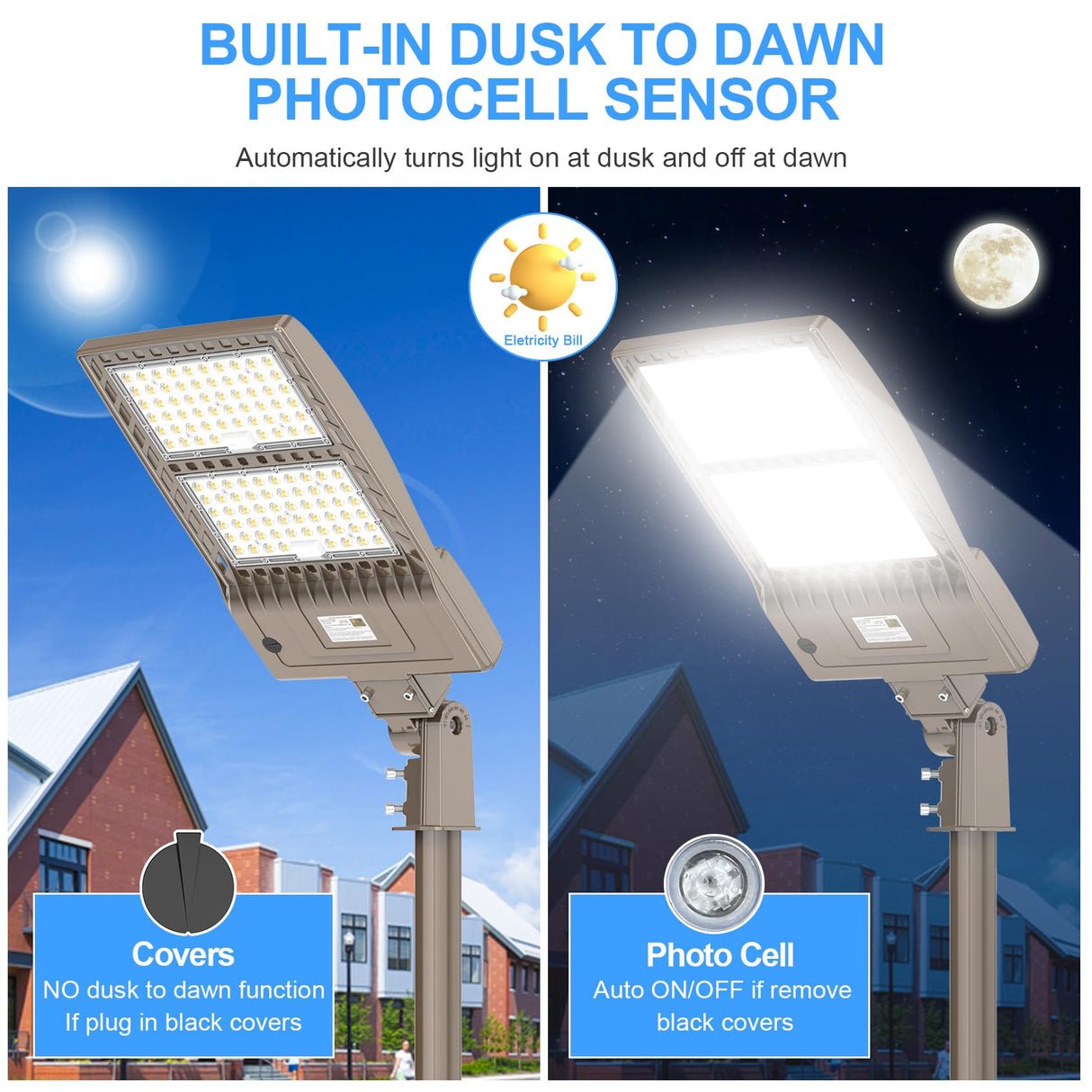

Built-in dusk-to-dawn photocell sensor

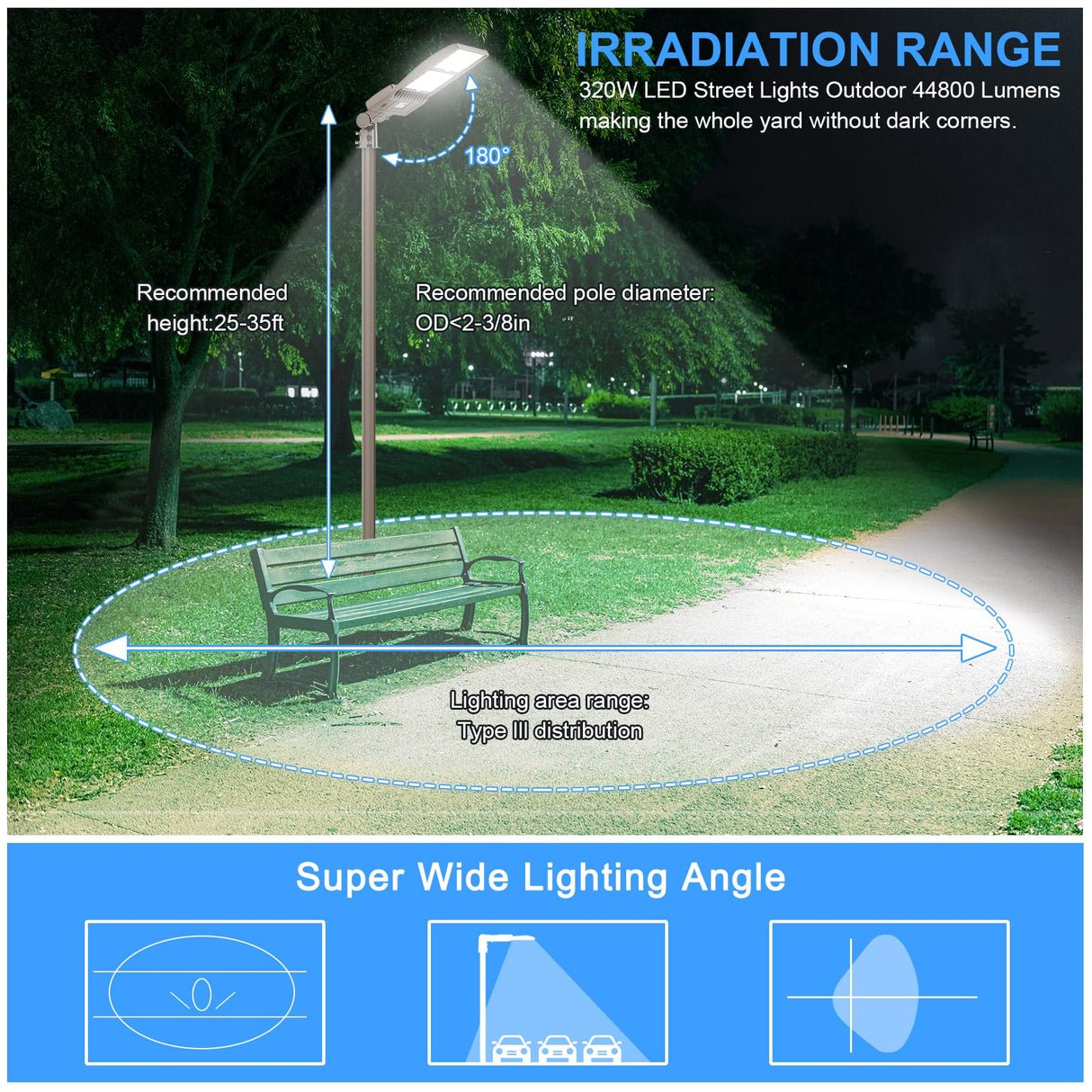

Lighting distributions: Type II, Type III, Type V
Adjustable CCT and power settings

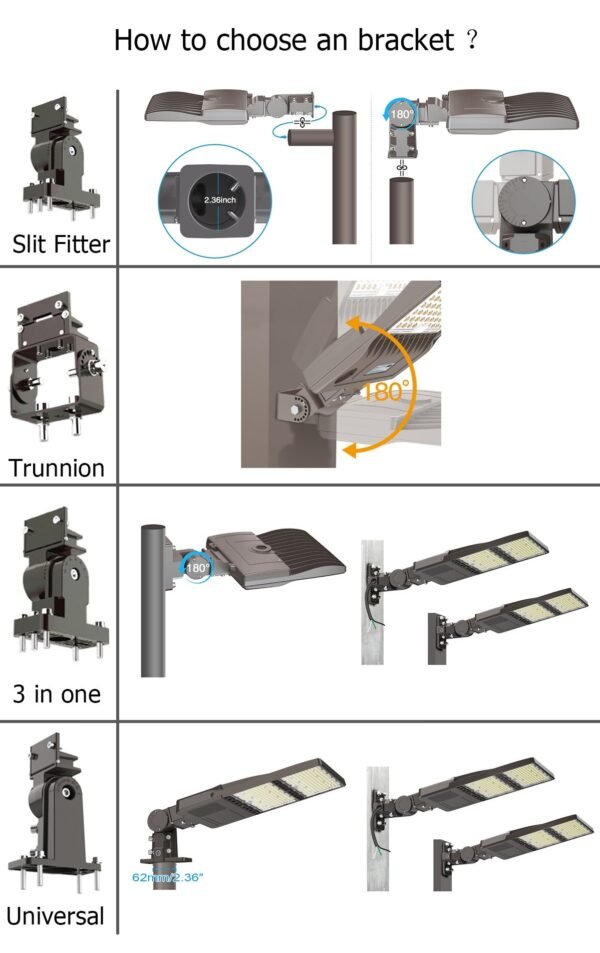

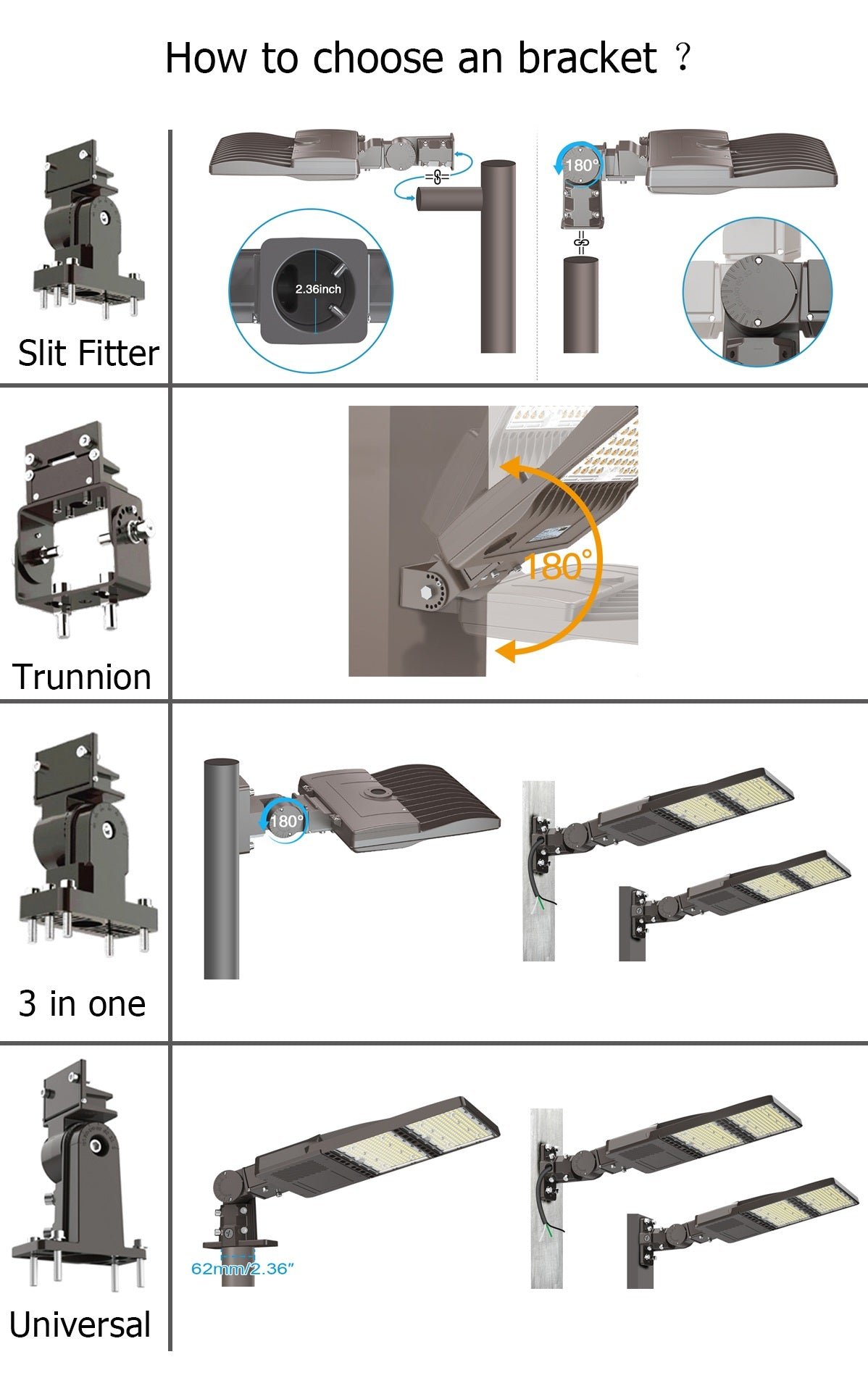

Four bracket options: slip fitter, round & square pole, trunnion, U-bracket
Description
Model | Wattage (Tunable) | Voltage | LED Chips & CCT | Lumen Output | Efficacy | Driver | Dimensions | Sensor |
---|---|---|---|---|---|---|---|---|
NG-PL-150W | 90W / 120W / 150W | 100~277V | 400pcs SMD3030 (200×5000K) | 21,000Lm | 140 LM/W | UL Driver | 558×305mm | Built-in photocell |
NG-PL-200W | 120W / 160W / 200W | 100~277V | 416pcs SMD3030 (208×5000K) | 28,000Lm | 140 LM/W | UL Driver | 558×305mm | Built-in photocell |

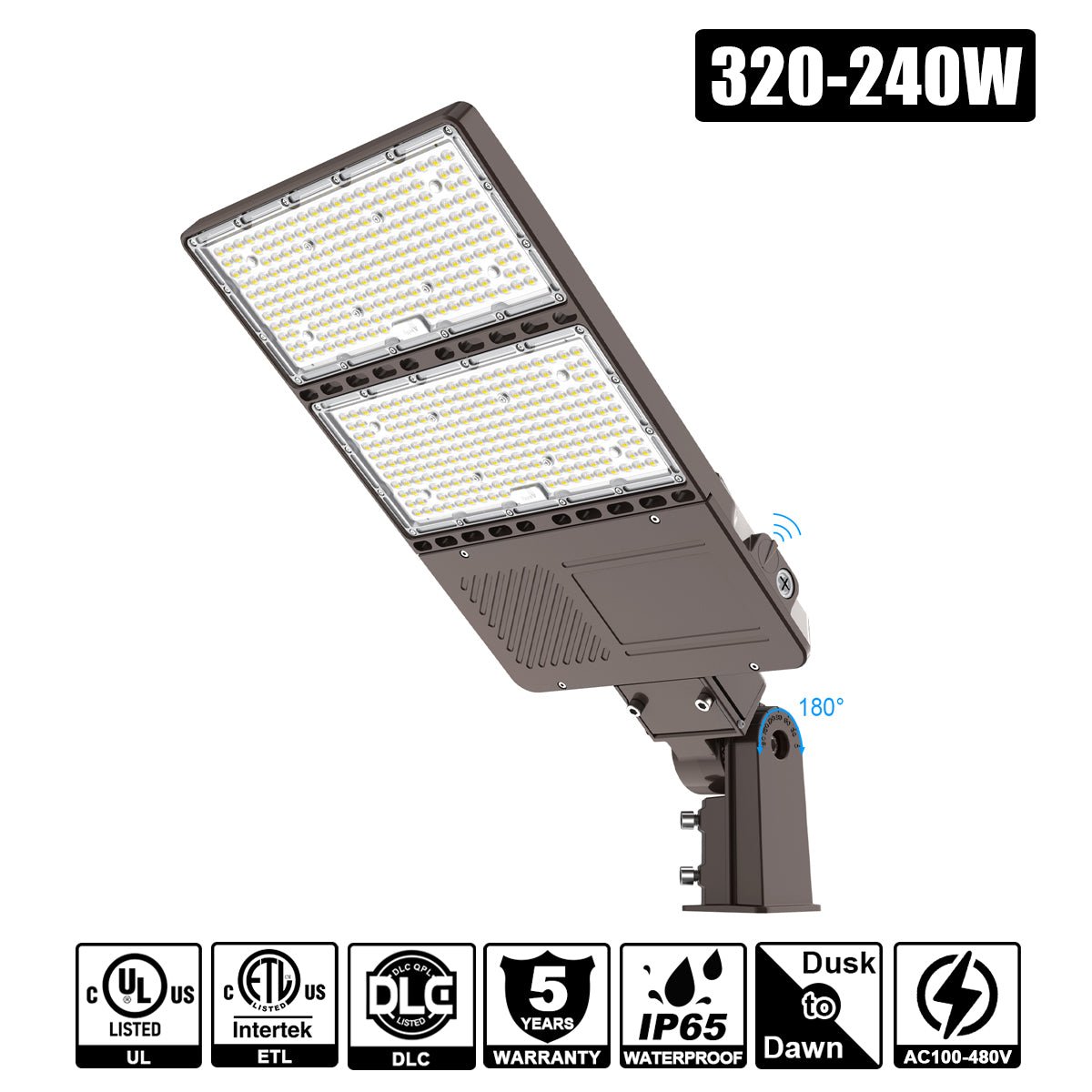

NG-PL-320W | 320W/240W/200W | 100~277V | 608pcs SMD3030 (304×5000K) | 44,800Lm | 140 LM/W | UL Driver | 730×305mm | Built-in photocell |
