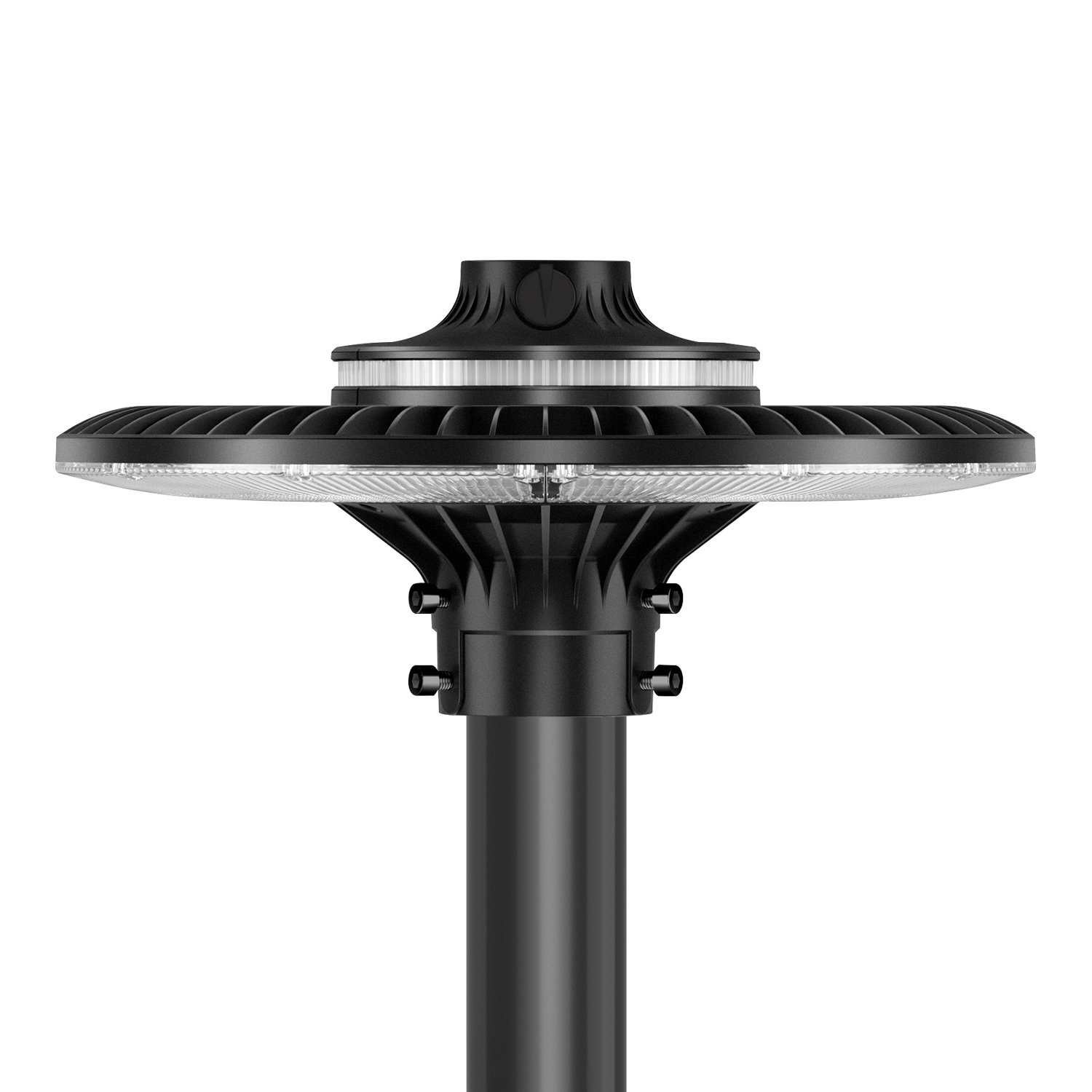

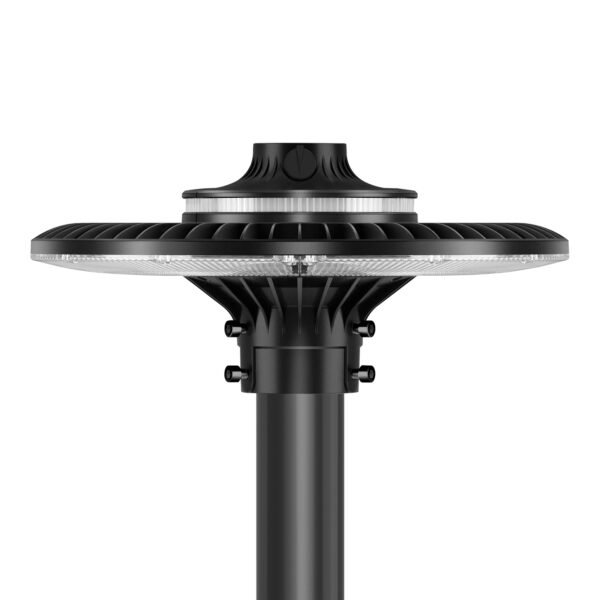

LED Post Top Fixture (60W–200W)
The LED Post Top Fixture (60W–150W) is a versatile luminaire designed for multiple outdoor applications. It features high-performance SMD 2835 LEDs with an impressive 130LM/W efficiency, delivering superior brightness and energy savings.

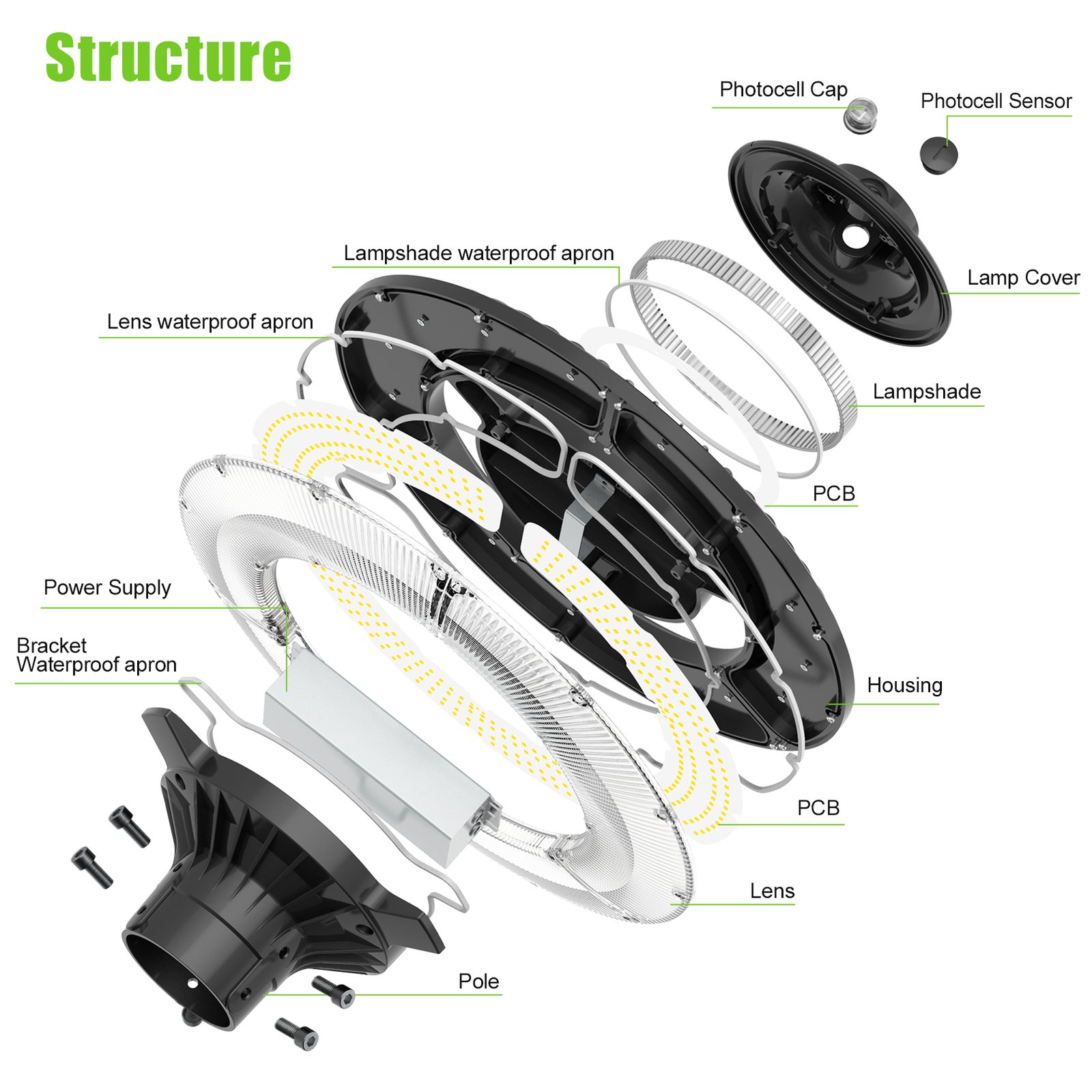

Each fixture is engineered with custom-designed LED arrays for optimal performance, housed in a durable one-piece aluminium die-cast body with premium coatings for long-lasting protection. A protective diffused glass cover ensures safety while enhancing light distribution.

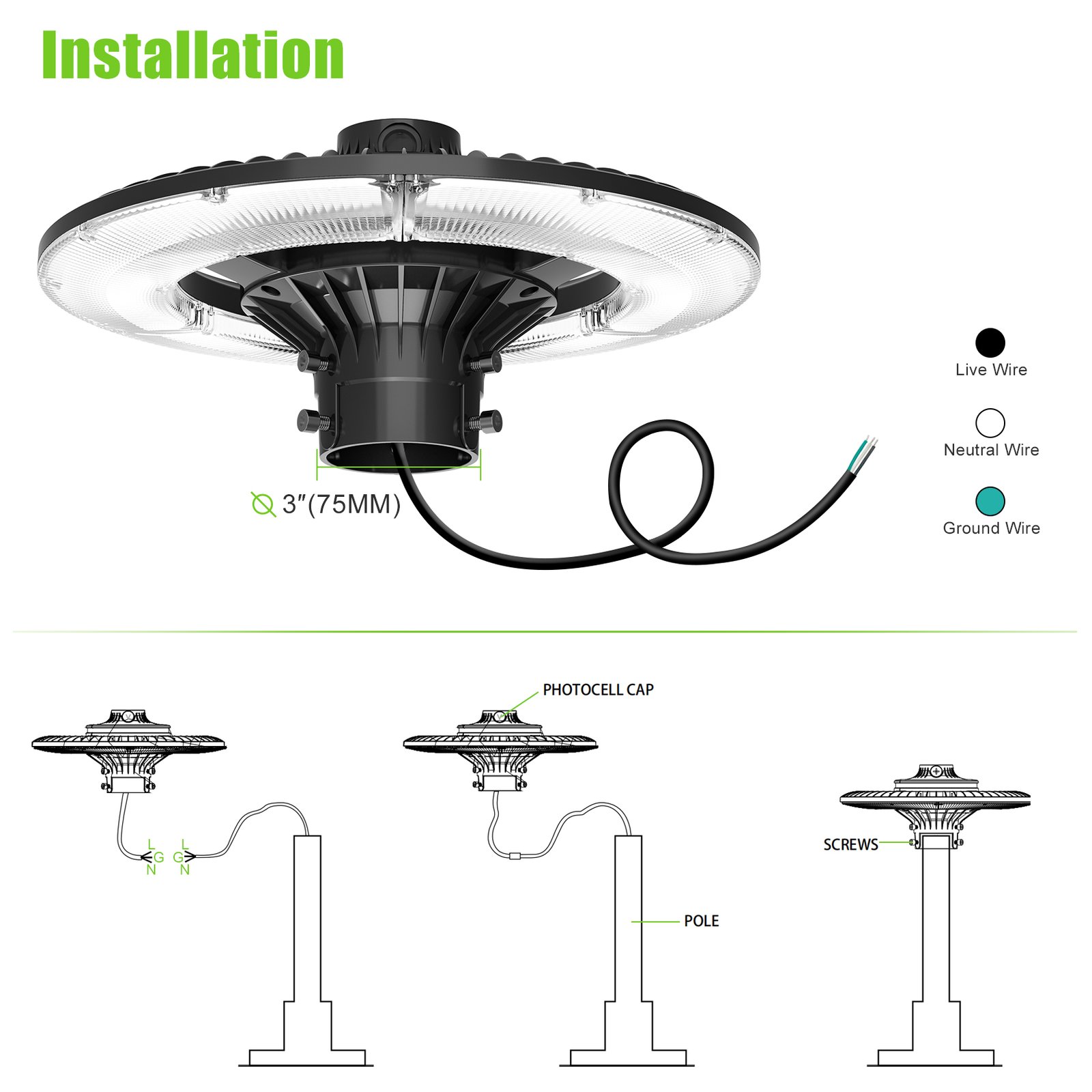

Built to withstand harsh environments, the fixture is waterproof, dustproof, and equipped with support rods that securely attach to a 2 3/8” tenon pole adapter.
With a lifespan of 50,000 hours and backed by a 5-year warranty, this fixture guarantees reliability and trouble-free operation.
Certified by ETL and DLC, it meets the highest safety standards and qualifies for energy rebate programs.

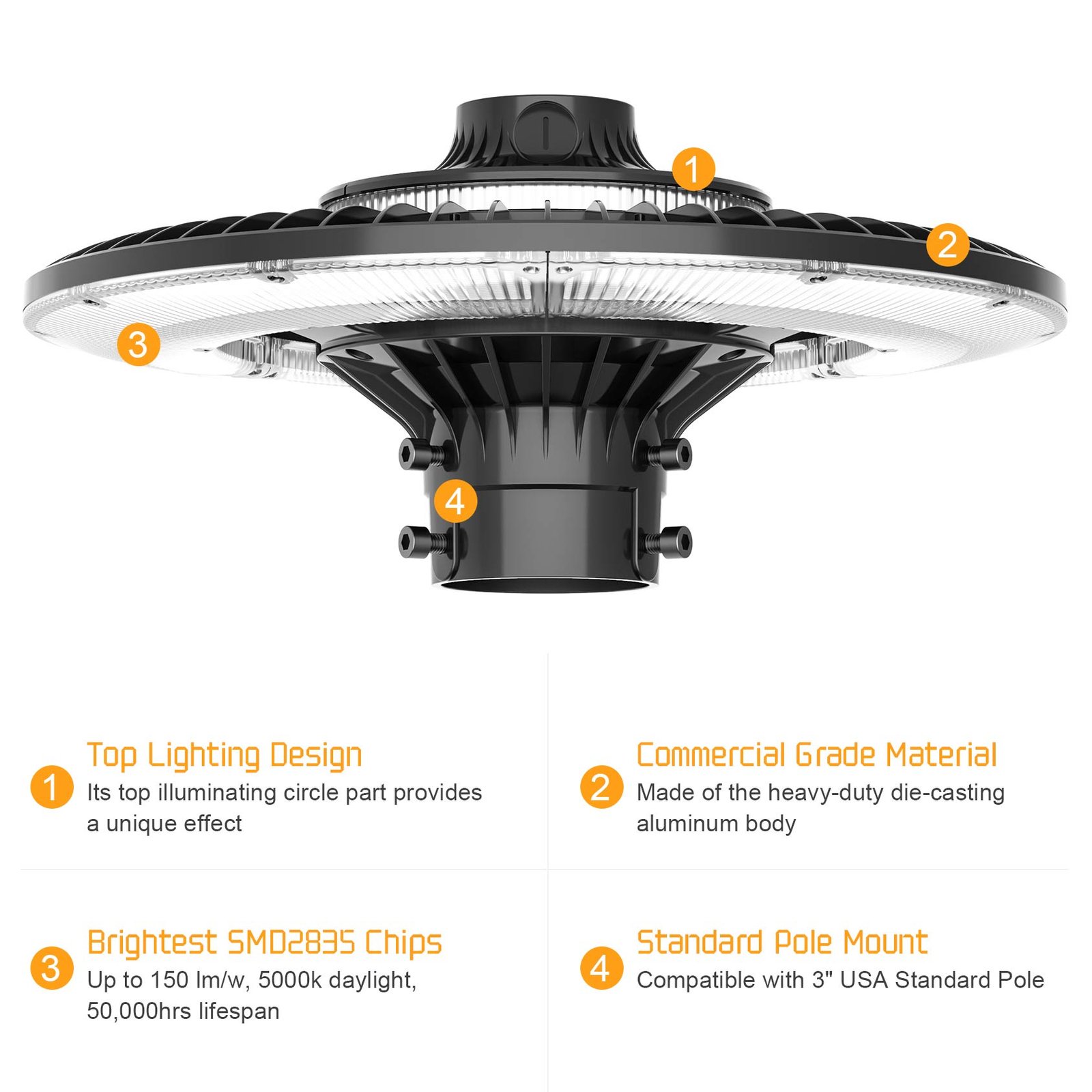

Key Features
Certifications: UL, cUL, DLC, CE approved

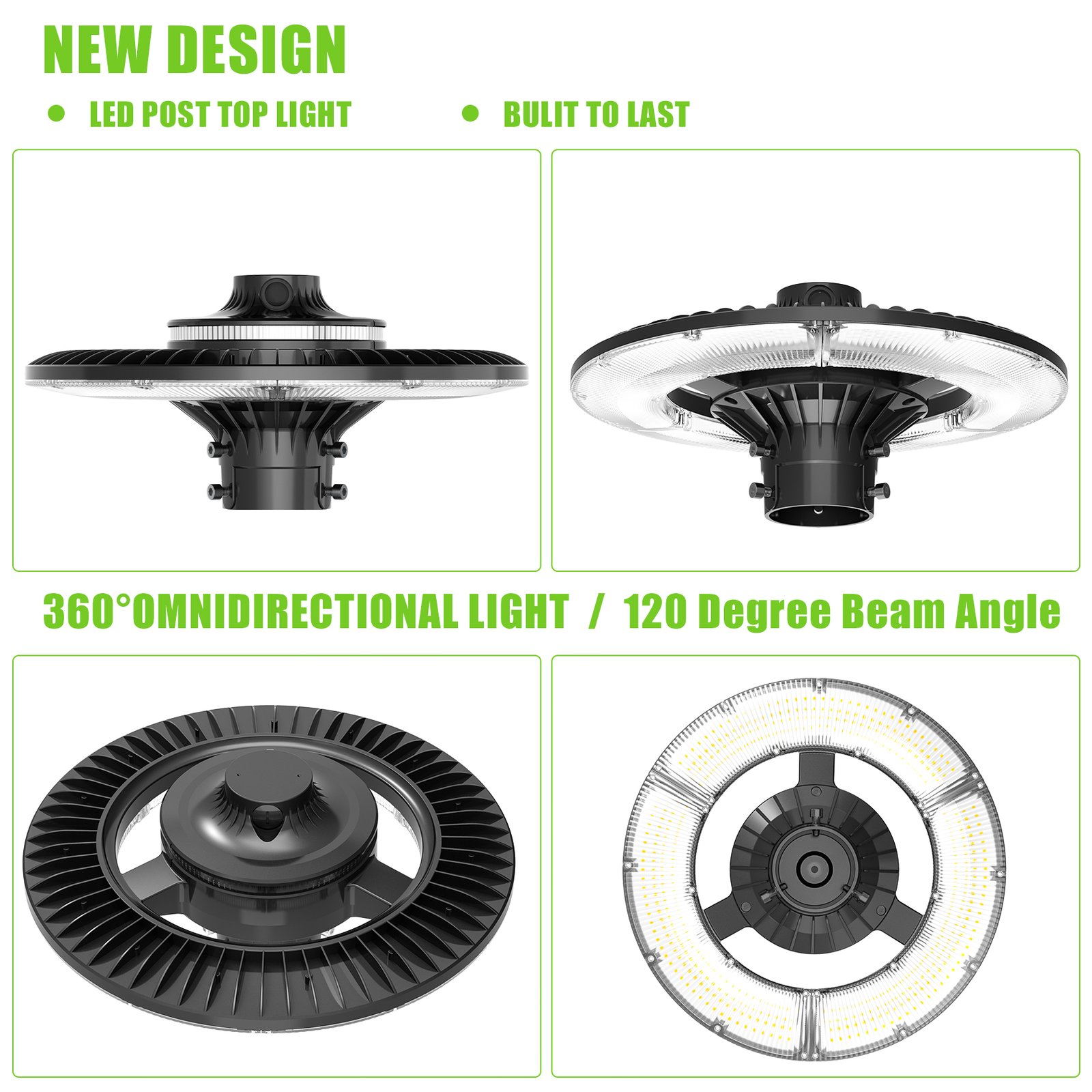

Design: Unique dual-lighting part design
Power Options: 60W, 80W, 100W, 120W, 150W, 200W

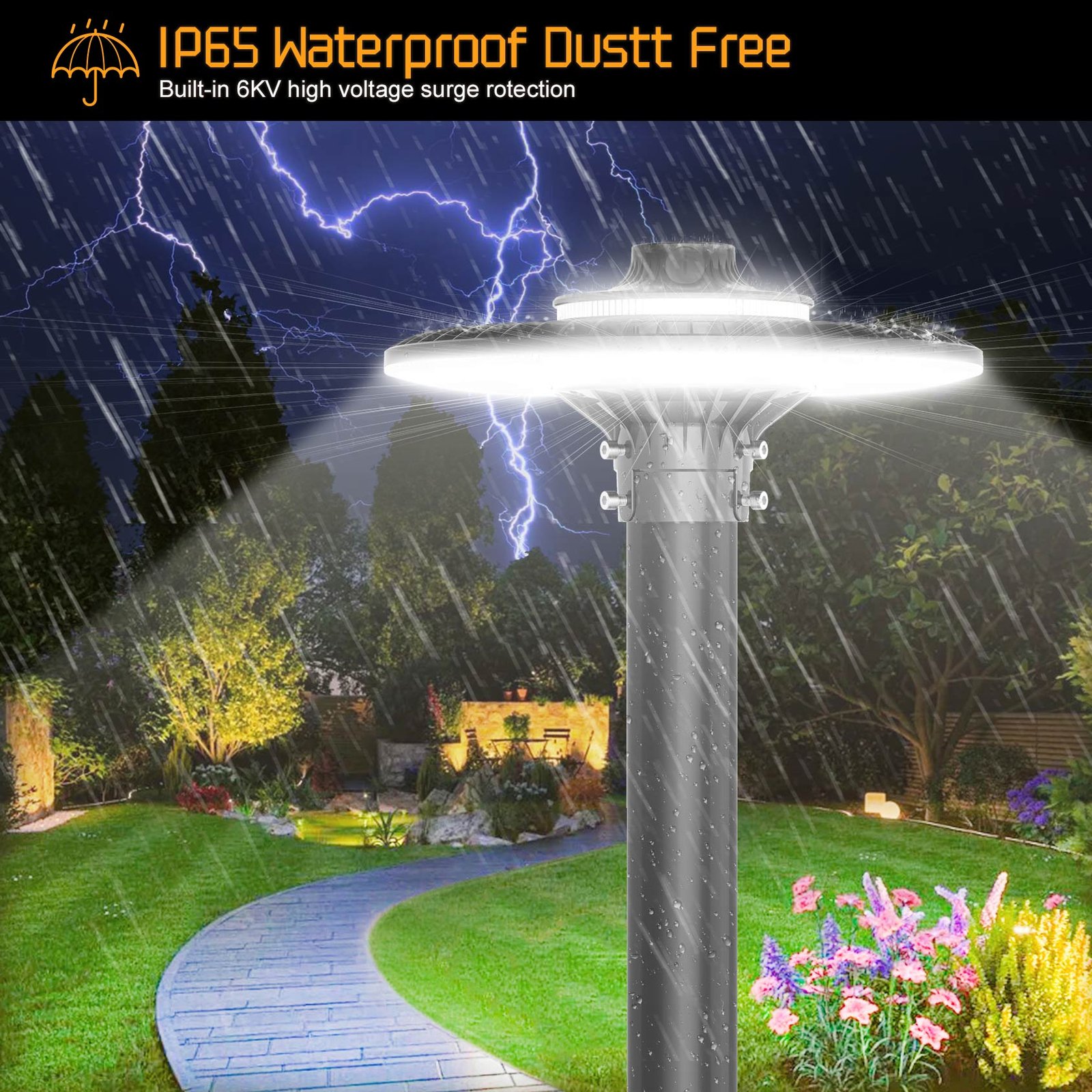

Protection: IP65 waterproof and dustproof
Surge Protection: 6kV built-in + 10kV external protection
LED Chips: 130 lm/W SMD2835 high-efficiency chips

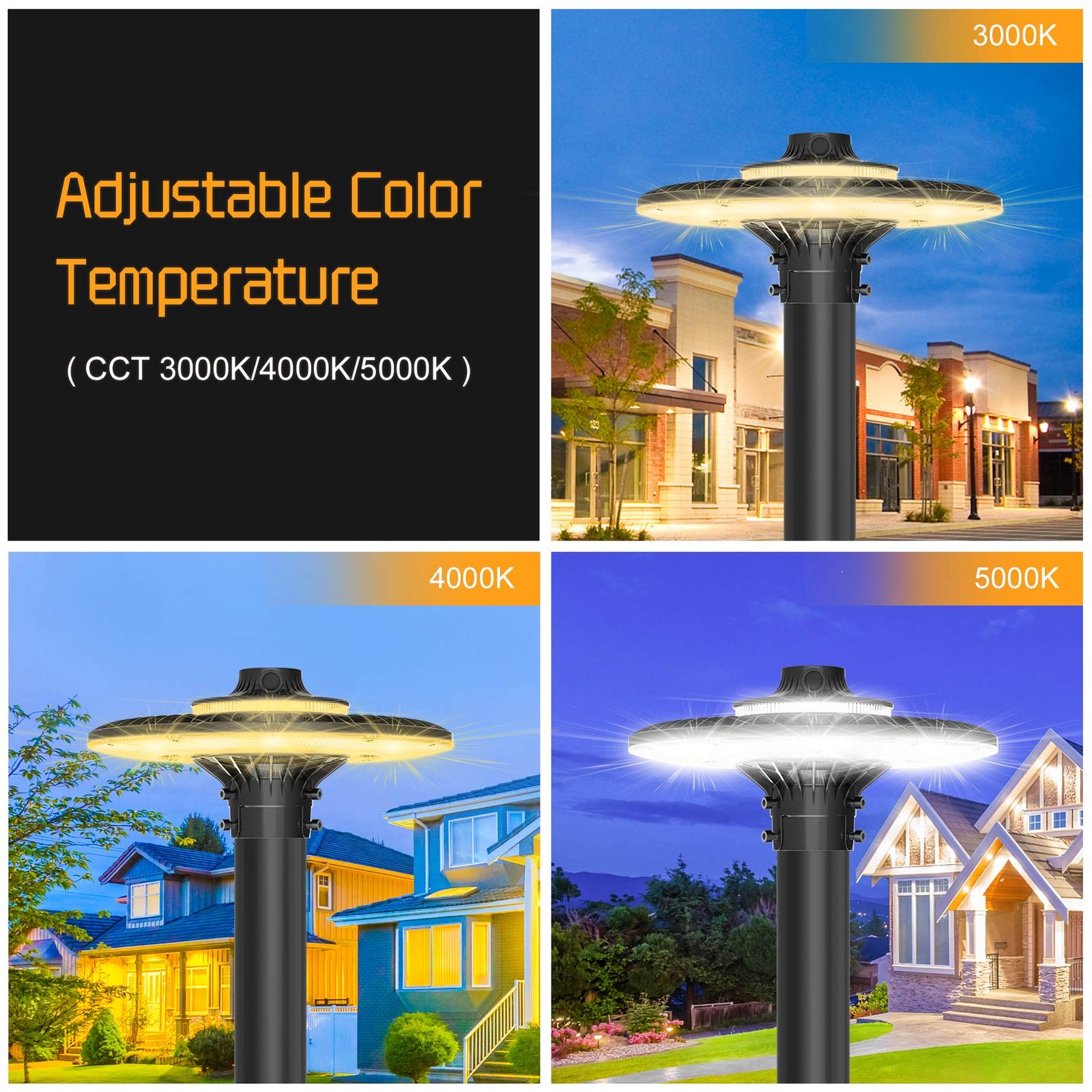

CCT Options: Selectable 3000K, 4000K, or 5000K
- Warranty: 5 Years
Description

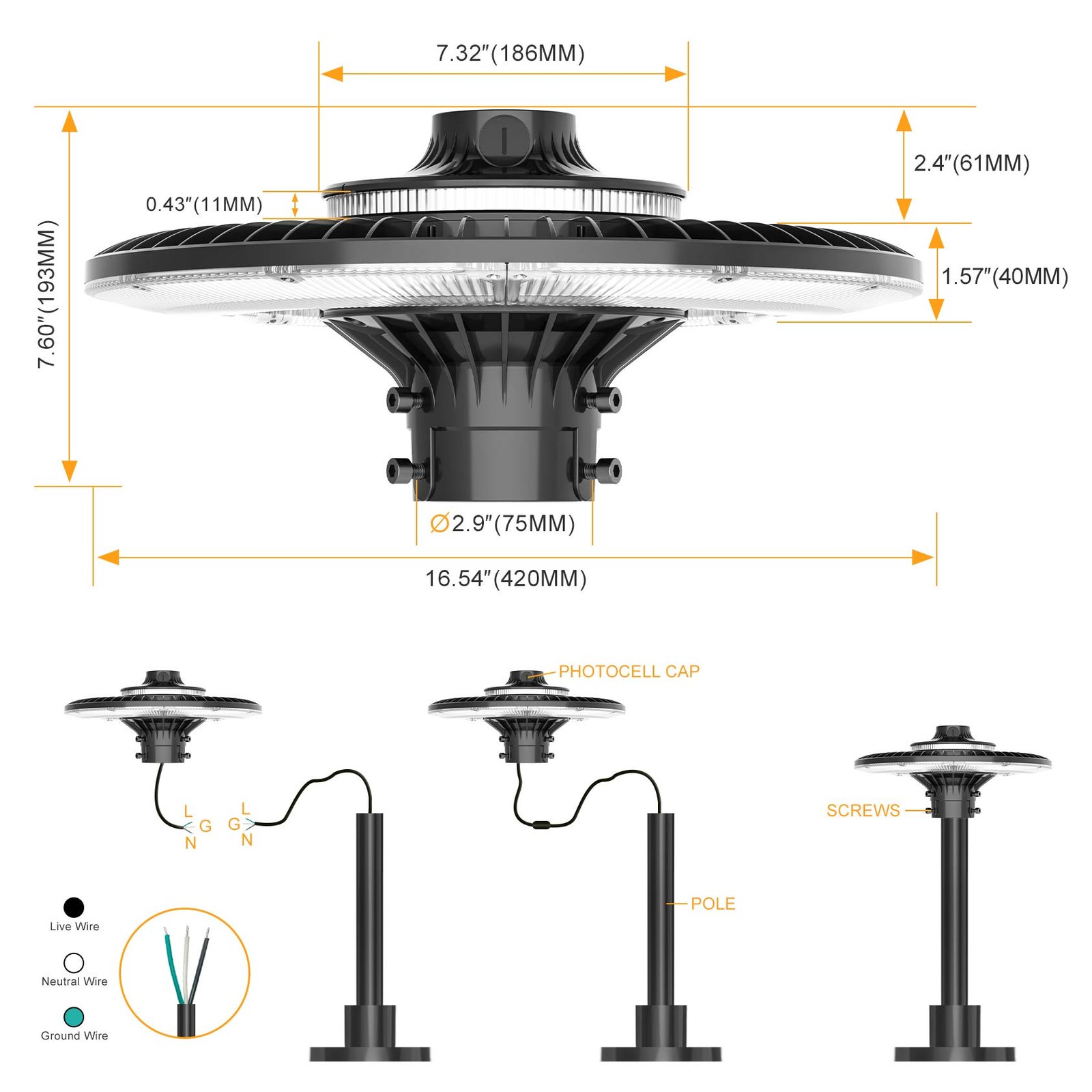

Item No. | Wattage | Input Voltage | Light Source | Luminous Flux | Light Efficacy | CCT | LED Driver | Dimension |
---|---|---|---|---|---|---|---|---|
EST-NG-AL-60WC-358P-B | 60W | 100~277V | 322 pcs SMD2835 | 8400 LM | 130 LM/W | 3000K / 4000K / 5000K | UL Driver | Φ316×177 mm |
EST-NG-AL-80WC-358P-B | 80W | 100~277V | 322 pcs SMD2835 | 11200 LM | 130 LM/W | 3000K / 4000K / 5000K | UL Driver | Φ316×177 mm |
EST-NG-AL-100WC-358P-B | 100W | 100~277V | 322 pcs SMD2835 | 14000 LM | 130 LM/W | 3000K / 4000K / 5000K | UL Driver | Φ316×177 mm |
EST-NG-AL-120WC-358P-B | 120W | 100~277V | 322 pcs SMD2835 | 14600 LM | 130 LM/W | 3000K / 4000K / 5000K | UL Driver | Φ316×177 mm |
EST-NG-AL-150WC-358P-B | 150W | 100~277V | 768 pcs SMD2835 | 21000 LM | 130 LM/W | 3000K / 4000K / 5000K | UL Driver | Φ420×193 mm |
EST-NG-AL-200WC-358P-B | 200W | 100~277V | 768 pcs SMD2835 | 28000 LM | 130 LM/W | 3000K / 4000K / 5000K | UL Driver | Φ420×193 mm |
