Description:

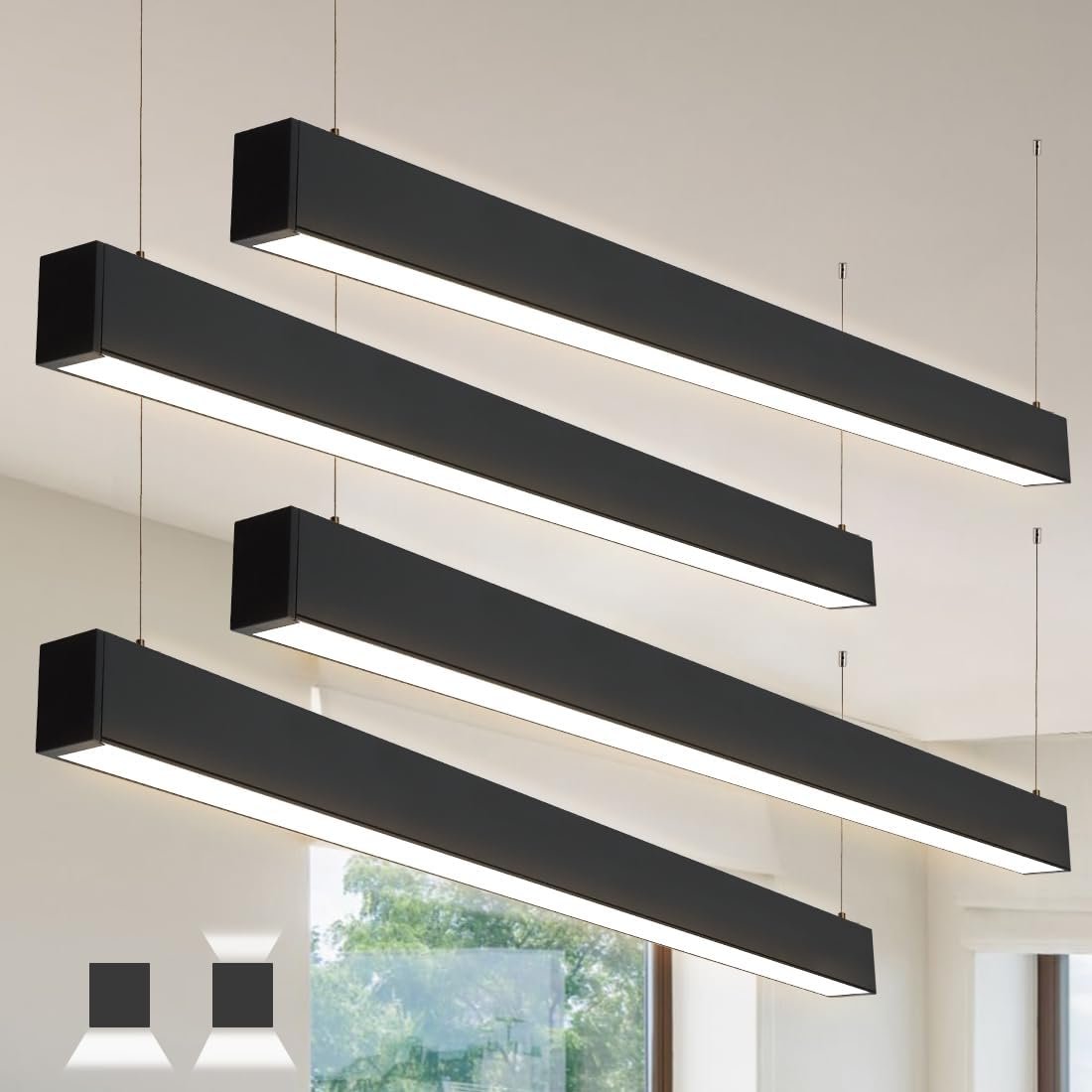

  • Versatile design allows installation as either uplight or downlight for suspension mounting.

  • Built with durable cold-rolled steel construction for long-lasting performance.

  • IP40 rated, providing added protection and reliability in demanding environments such as schools.

  • Features a special optical design that ensures high efficacy and superior light distribution.

  • We provide 5-year warranty for this ETL-listed linear pendant light that is rated to last at least 50,000 hours.

Features

Feature Details
Working Temperature -4°F ~ +104°F / -20°C ~ +40°C
Suitable For Damp locations
Lumen Maintenance Over 70% @ 50,000+ Hours
CRI ≥ 80
Power Factor ≥ 0.95
Beam Angle 100°

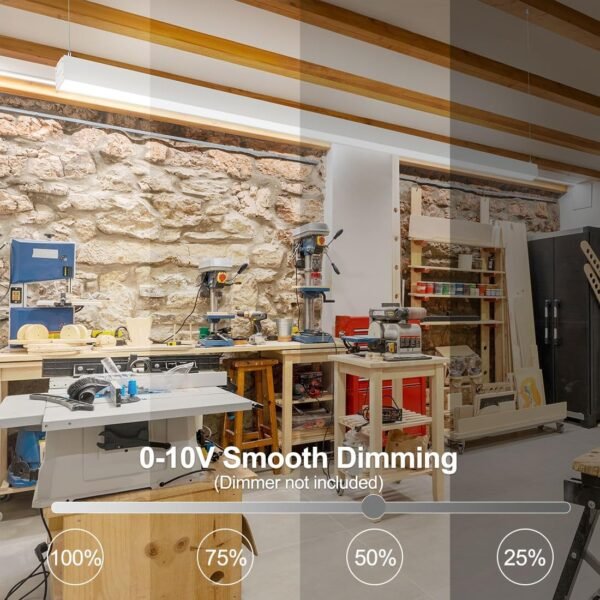

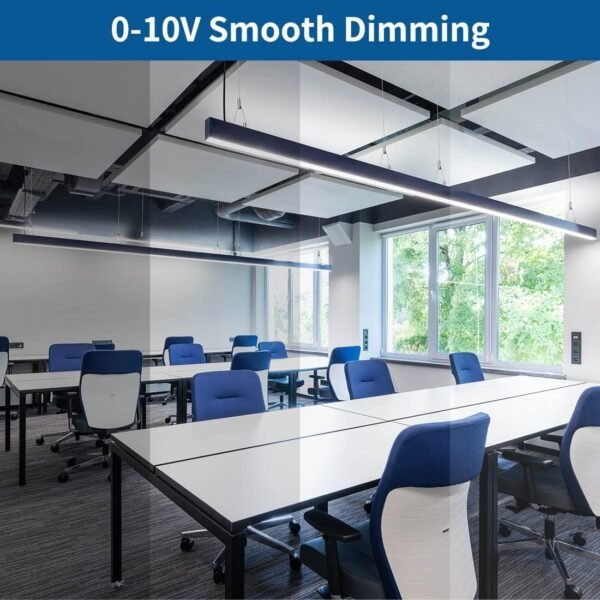

Dimming 0-10V, 6.5 ft 5-wire power feed cable included
Adjustable Cables 6.5 ft hanging cables included
Body White or Black finish. Aluminum heatsink for efficient heat dissipation
Linkable With wire harness connection kit (for connecting power between fixtures)

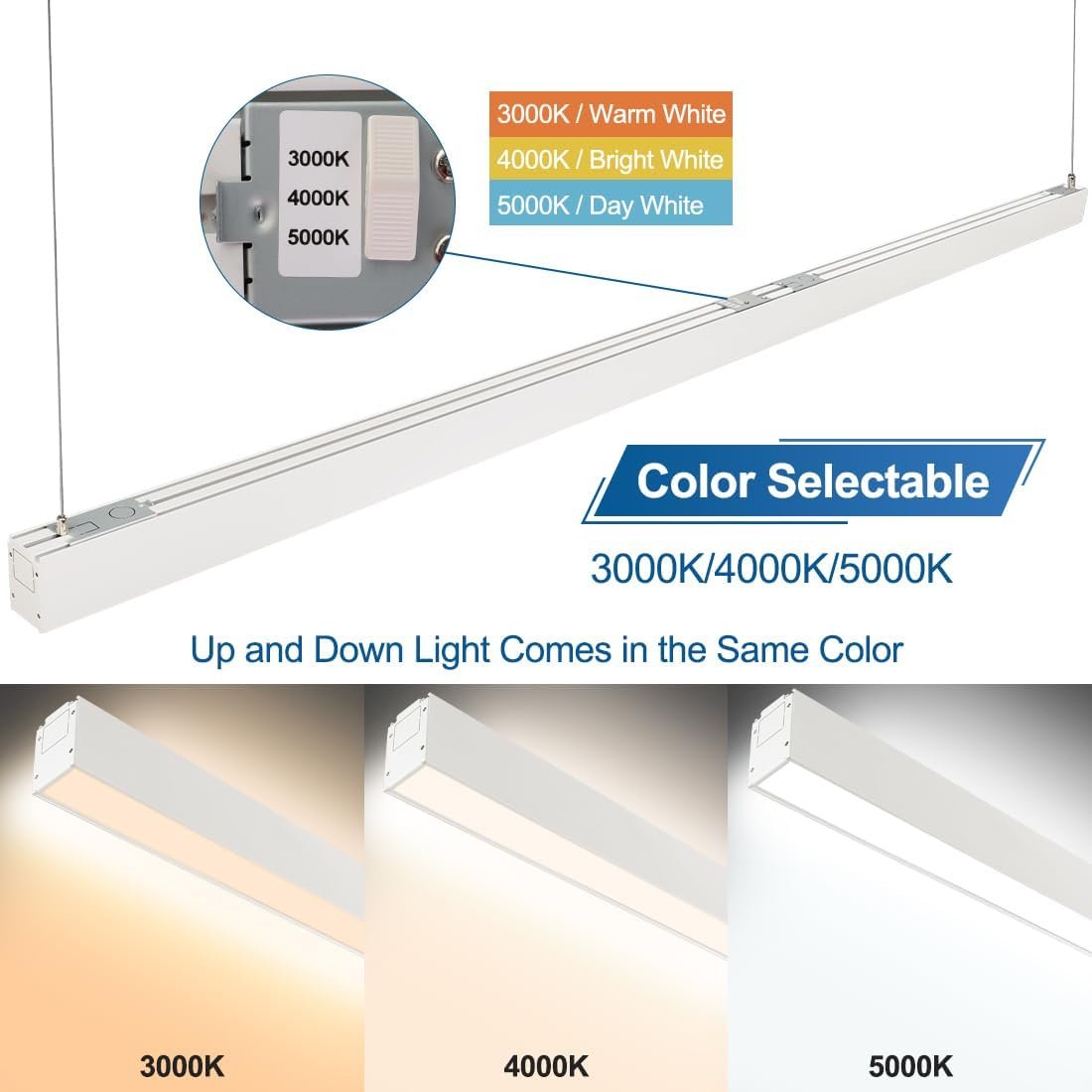

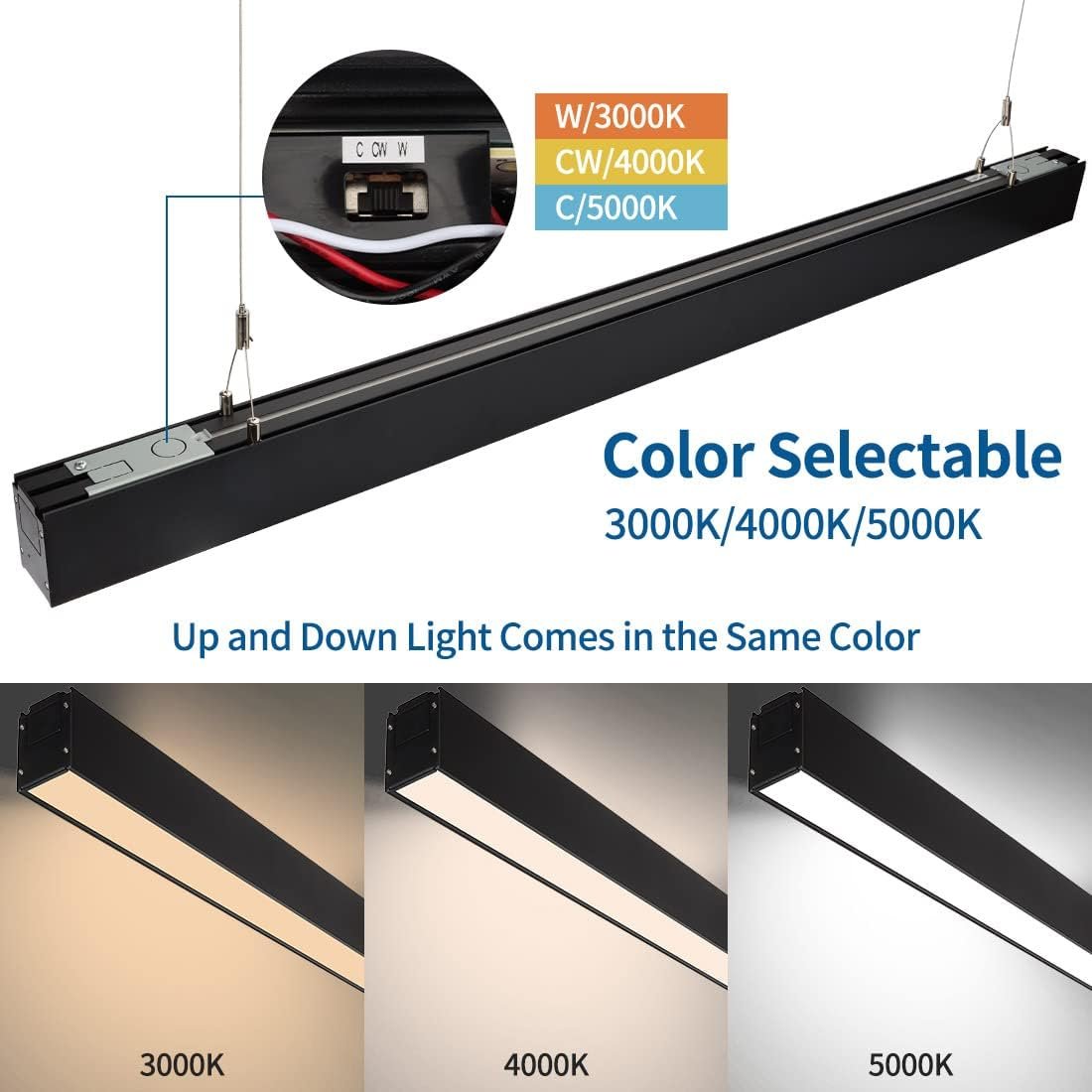

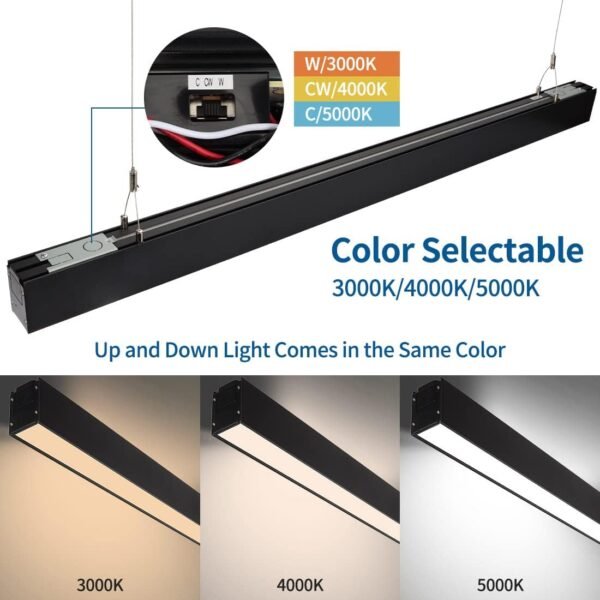

CCT Adjustable Top & bottom LED controlled separately for color options
Lighting Control 30% top + 70% down light output (default), top light can be disconnected for 100% downlight



Specifications

Model Length Wattage CCT Lumens Finish Dimmable Voltage
EST-HY-2FT-LUD-25W-30K/40K/50K (XX) 2 ft 25W 3000K / 4000K / 5000K 3250 lm White/Black 0-10V 120–277V
EST-HY-4FT-LUD-50W-30K/40K/50K (XX) 4 ft 50W 3000K / 4000K / 5000K 6500 lm White/Black 0-10V 120–277V
EST-HY-8FT-LUD-100W-30K/40K/50K (XX) 8 ft 100W 3000K / 4000K / 5000K 13000 lm White / Black 0-10V 120–277V



Size

2 FT, 4 FT, 8 FT

Color

Black, White
