Key Features
UL / cUL / ETL / cETL / DLC approved

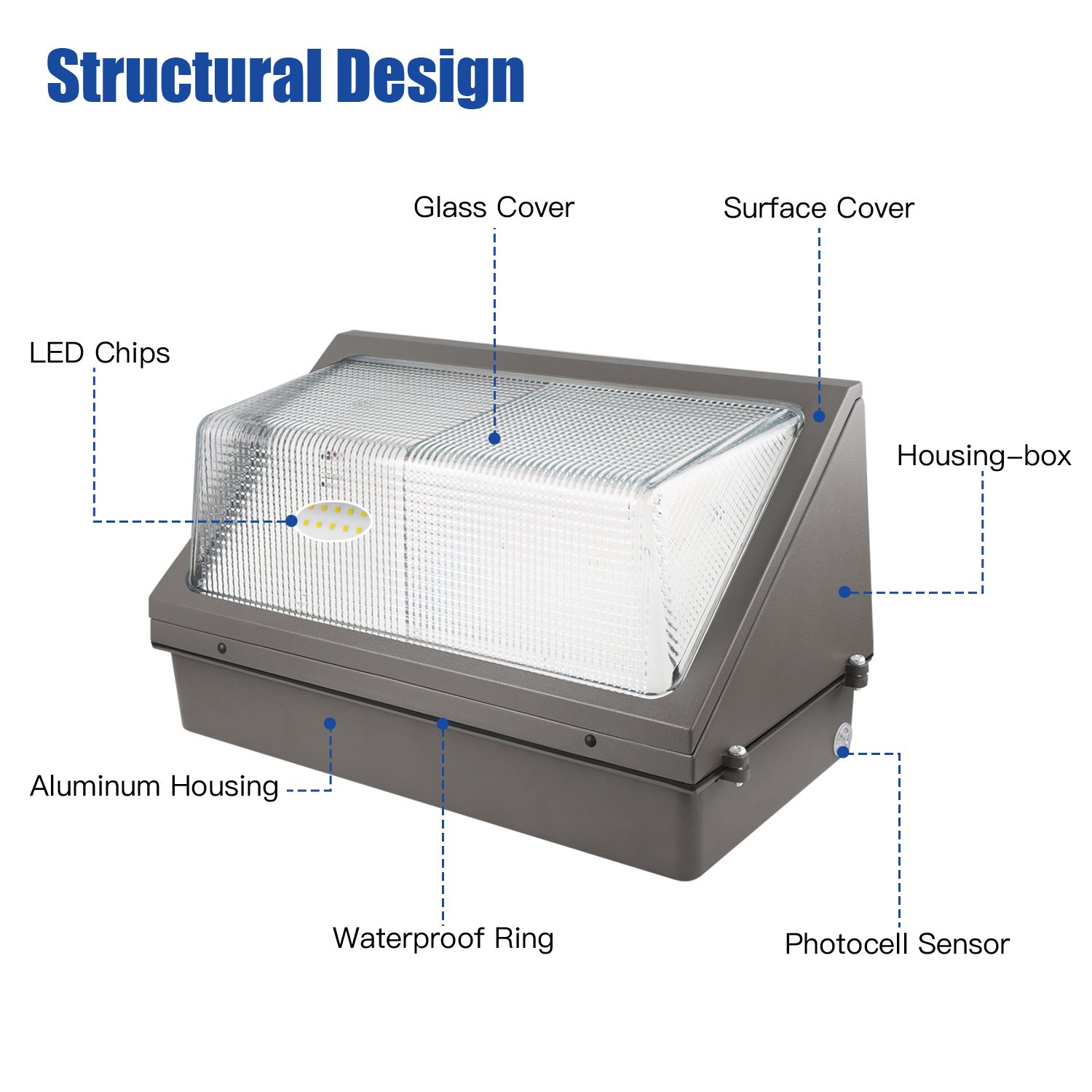

Lightweight aluminum fin heat sink
Tempered glass for safe installation
Input voltage: AC100-277V
Built-in power supply

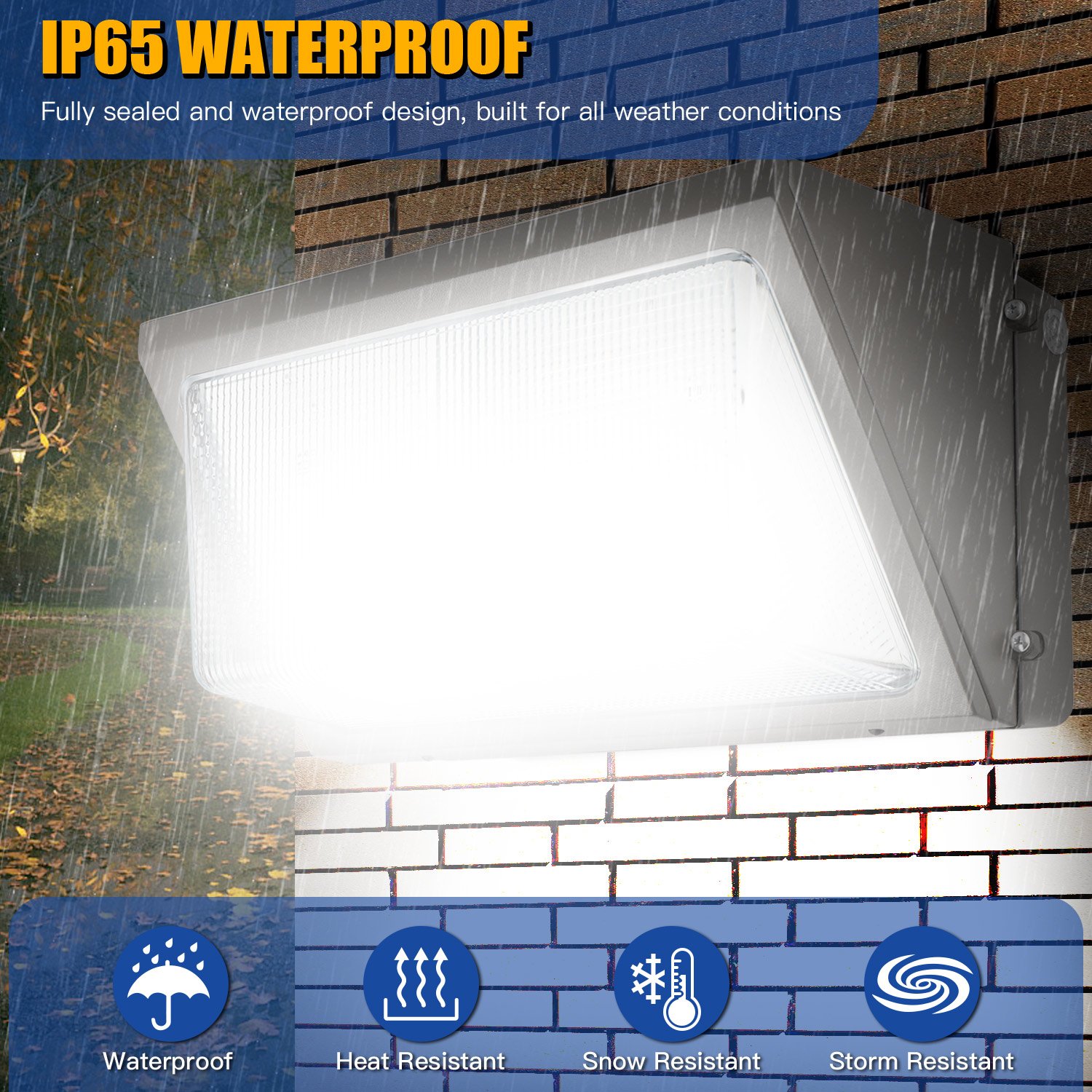

Suitable for damp locations
Adjustable wattages: 60% / 80% / 100%
Specifications

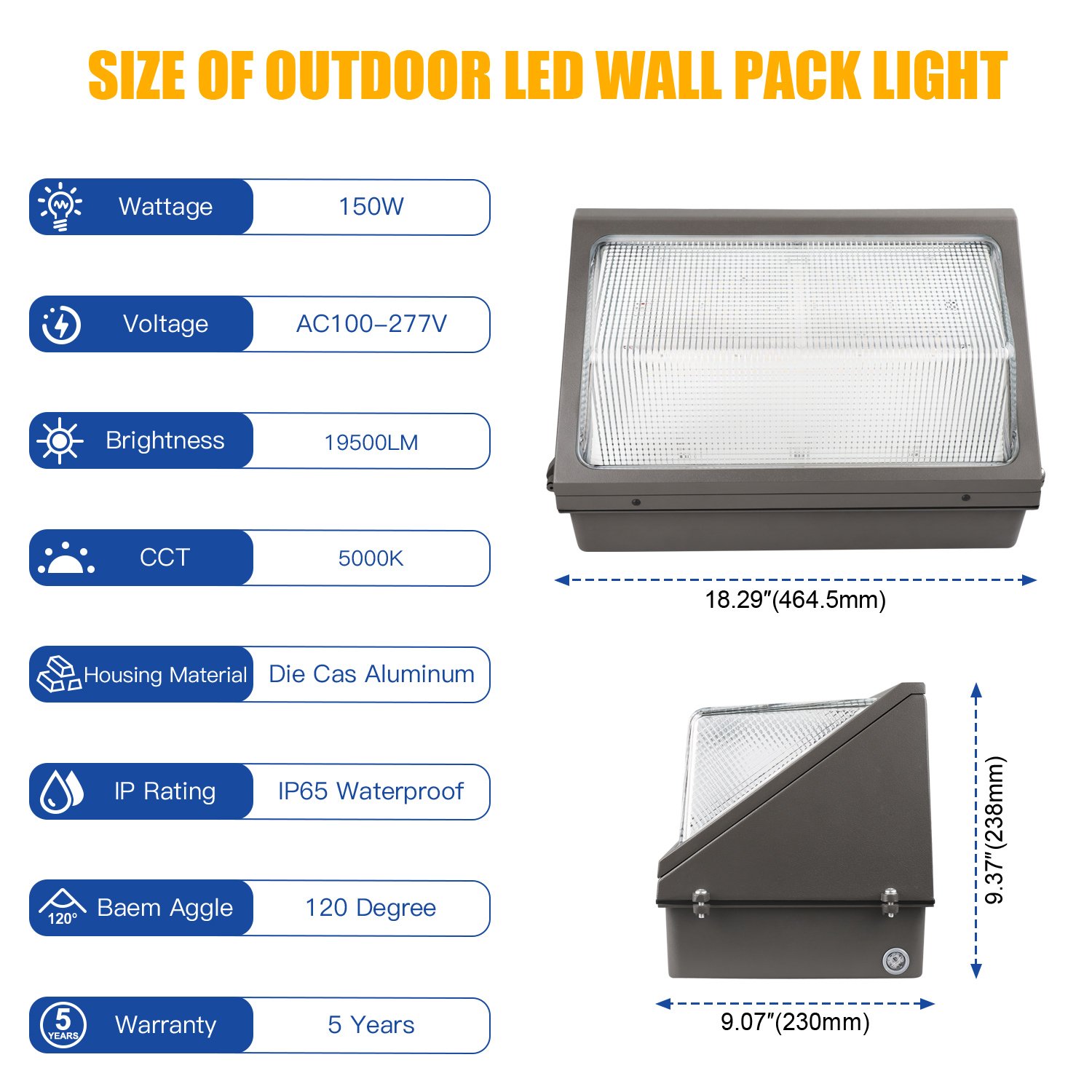

| Model | Lumen (±10%) | LED/Qty. | Efficacy (±10%) | Beam Angle | Voltage/Frequency | Working Temperature | CRI | PF | CCT & Power (Fixed/Adjustable) | Dimension |
|---|---|---|---|---|---|---|---|---|---|---|
| EST-NG-WP-60WCD-358P-GWZX | 7800LM | 60pcs SMD3030 | 130LM/W | 120° | AC100-277V 50/60Hz | -40°C~40°C (-40°F~104°F) | ≥80 | >0.9 | Fixed CCT & Power 3000K-5700K or Adjustable CCT & Power 4500K/5000K/5700K 100%/80%/60% | 368238200mm |
| EST-NG-WP-80WCD-458P-GWZX | 10400LM | 80pcs SMD3030 | 130LM/W | 120° | AC100-277V 50/60Hz | -40°C~40°C (-40°F~104°F) | ≥80 | >0.9 | Fixed CCT & Power 3000K-5700K or Adjustable CCT & Power 4500K/5000K/5700K 100%/80%/60% | 368238200mm |
| EST-NG-WP-120WCD-458P-GWZX | 15600LM | 120pcs SMD3030 | 130LM/W | 120° | AC100-277V 50/60Hz | -40°C~40°C (-40°F~104°F) | ≥80 | >0.9 | Fixed CCT & Power 3000K-5700K or Adjustable CCT & Power 4500K/5000K/5700K 100%/80%/60% | 368238200mm |
