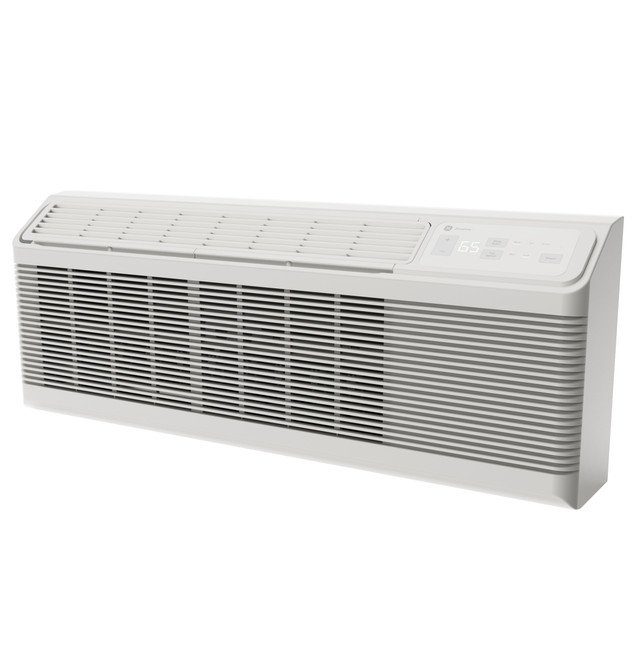

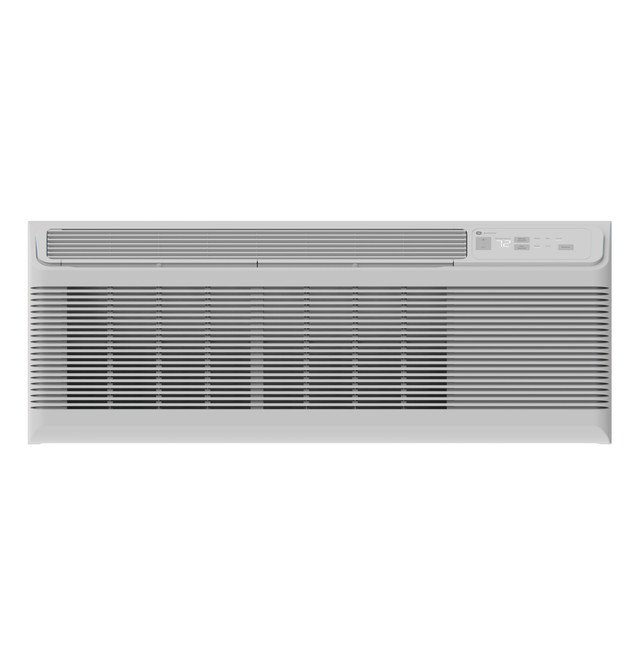

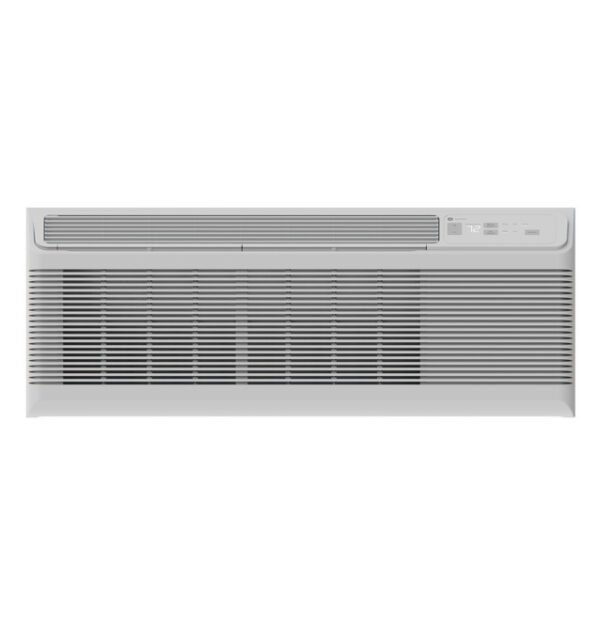

PTAC With Heat Pump Fixed Speed Unit with Corrosion Protection 9,000 BTU, 265 Volt

9,000 BTU Fixed-Speed Heat Pump with Corrosion Protection, 265V

The Packaged Terminal Air Conditioner (PTAC) with heat pump offers powerful performance and energy-efficient climate control in a compact, slide-in chassis design. Engineered for long-term reliability, this 9,400 BTU unit delivers consistent cooling and heating while featuring corrosion protection, advanced microcomputer controls, and smart fan features.

Designed to meet both hospitality and residential needs, this PTAC unit supports remote thermostat and central desk control compatibility, and offers enhanced comfort with adjustable fan speeds, built-in temperature limiting, and automatic frost control. Its eco-friendly R454B refrigerant and high EER of 12.1 make it an excellent choice for those focused on performance and sustainability.

Key Features:

• Cooling Capacity: 8,000 – 9,400 BTU with 12.1 EER

• Heating Power: 8,000 BTU via heat pump + backup resistance heat

• Dehumidification: 1.9 pints/hour (high speed)

• Airflow: Up to 400 CFM (high), 290 CFM (low)

• Fan Speeds: High/Low for Cooling, Heating, and Fan-Only Modes

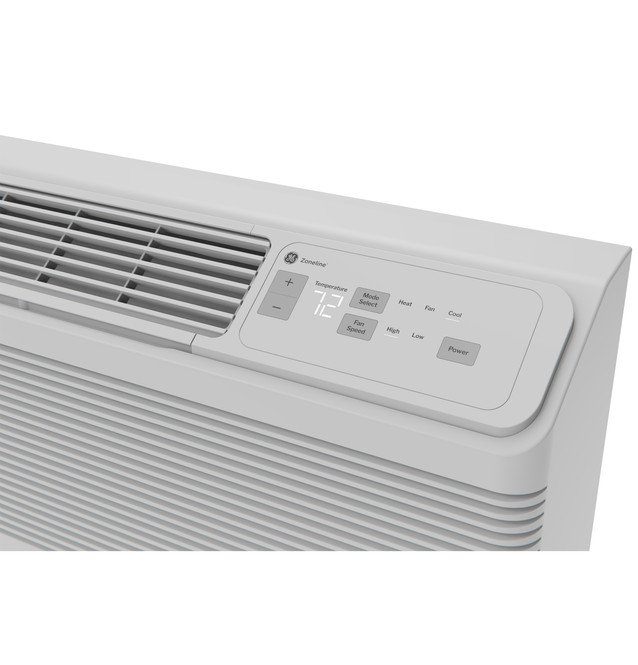

• Control Panel: Microcomputer with tactile touchpad and LED display

• Built-In Protections: Freeze Sentinel, Heat Sentinel, Indoor Frost Control

• Smart Features: Auto Power Recovery, Smart Fan Cycle, 24-step temperature limiting

• Remote Compatibility: Works with remote thermostats and central desk systems

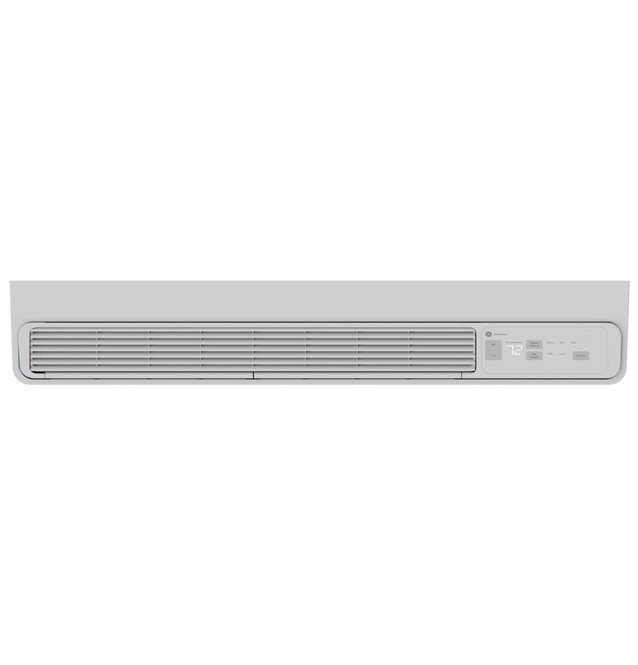

• Durable Build: Corrosion-treated chassis and concealed 3-position manual vent control

Technical Specifications:

• Dimensions: 16″ H × 42″ W × 20 13/16″ D

• Voltage: 265V

• Power Consumption (Cooling): 775 Watts / 3.3 Amps

• Refrigerant Type: R454B (28 oz charge)

• Sensible Heat Ratio: 0.75

• Compressor: Rotary

• Color: Grey White

Installation & Accessories:

• Wall Case Required: RAB42

• Includes: Outdoor grille

• Chassis Type: Slide-in

Warranty Coverage:

• 1-Year – Full appliance (Parts & Labour)

• 5-Year – Sealed refrigerating system (Parts & Labour)
