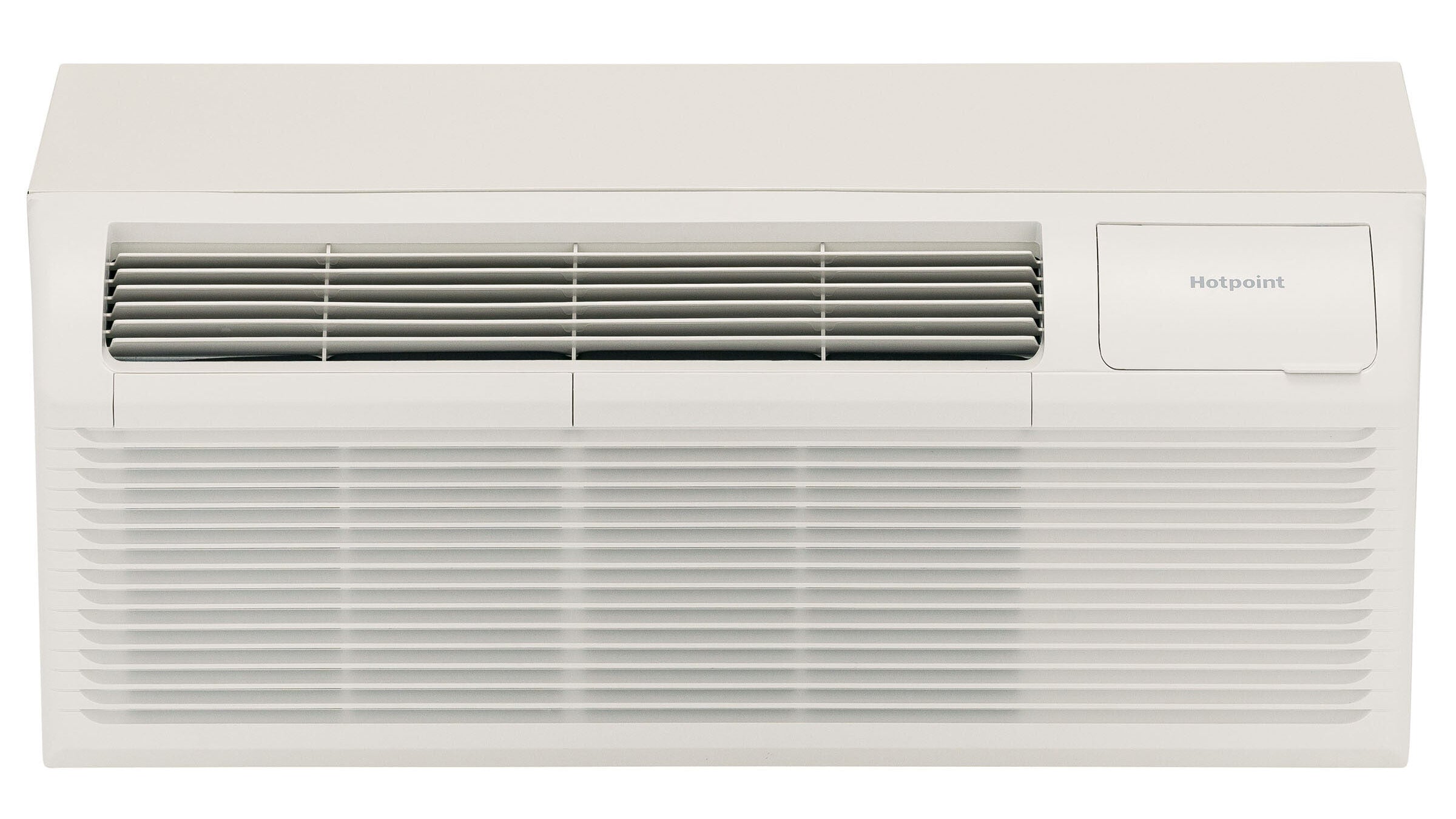

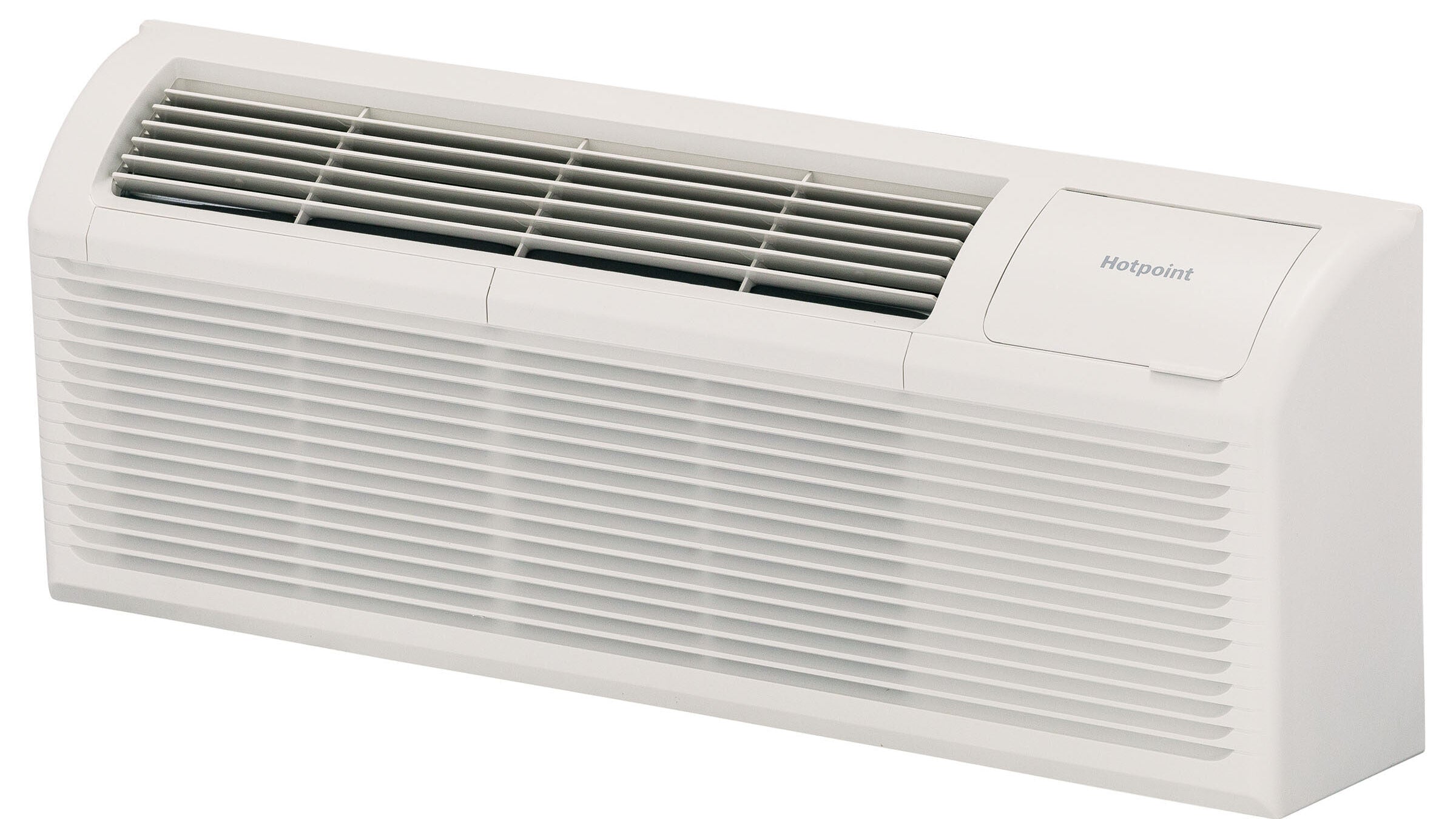

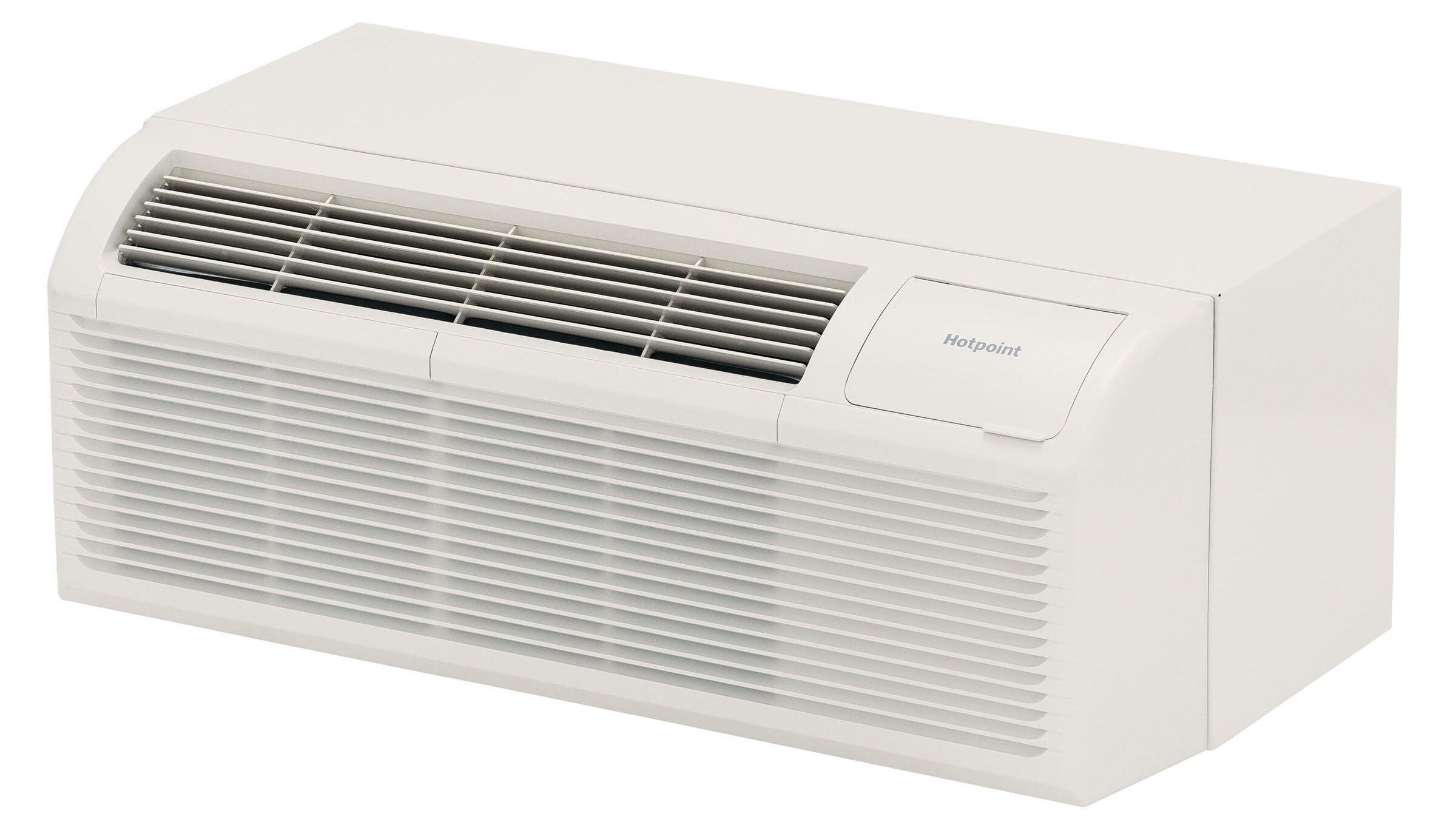

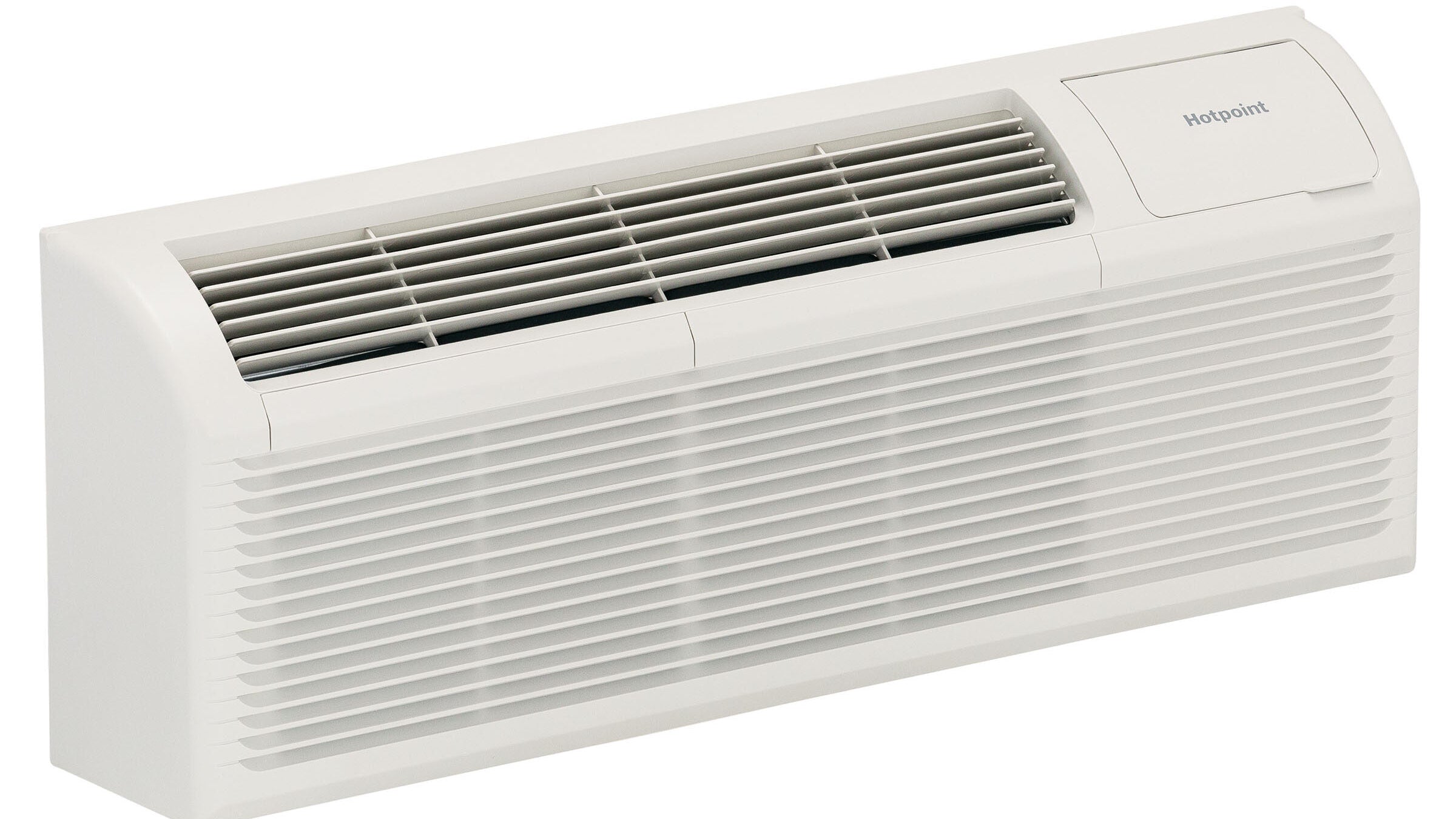

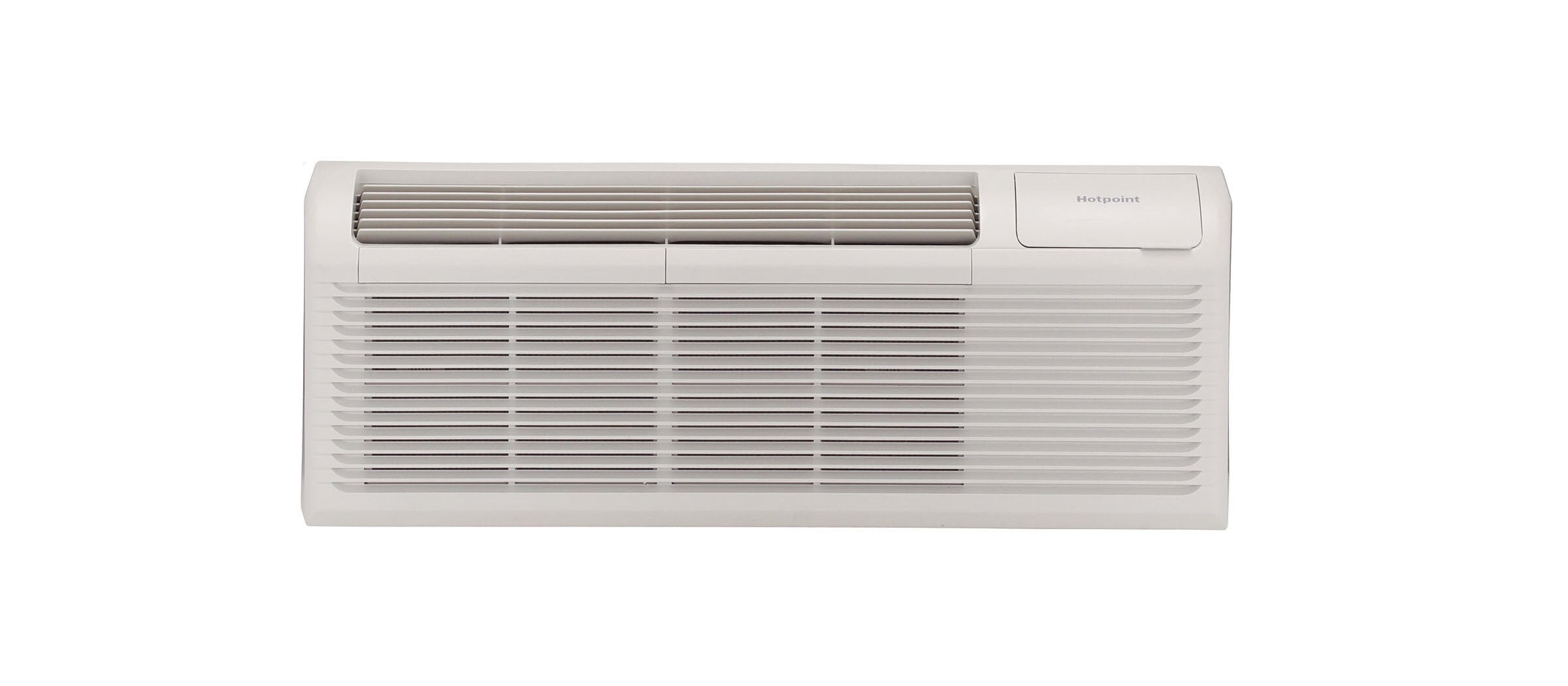

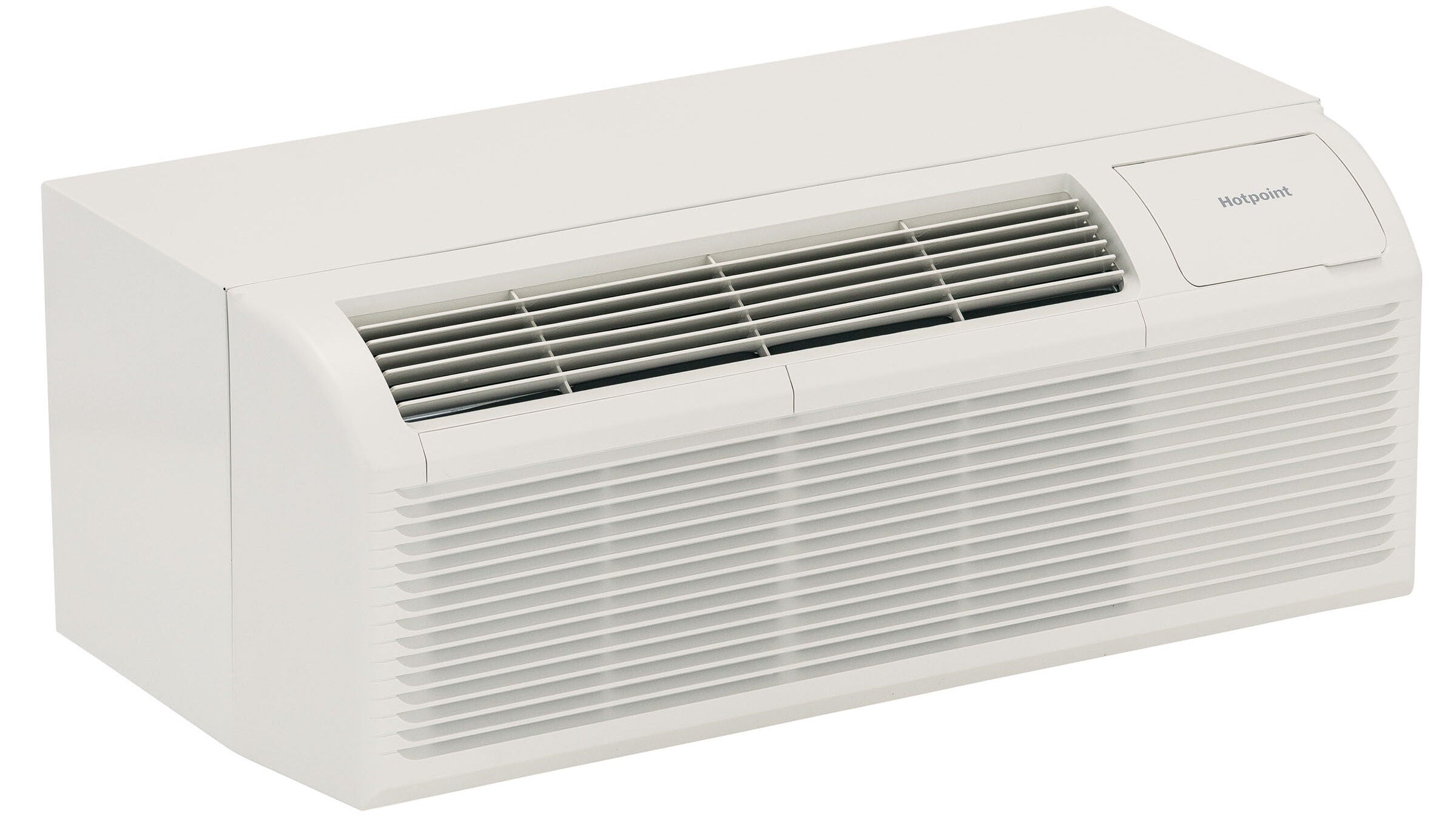

Hotpoint PTAC with Electric Heat 7,000 BTU, 20 amps, 230/208 Volt

Hotpoint PTAC unit featuring 7,000 BTU electric heat, 20-amp capacity, and 230/208-volt operation.

• Backed by an industry leaderWith a long history of creating durable products at an affordable price, Hotpoint is your trusted PTAC brand
• 4-temperature limiting optionsEasily select one of four temperature ranges for peak efficiency and total customer comfort

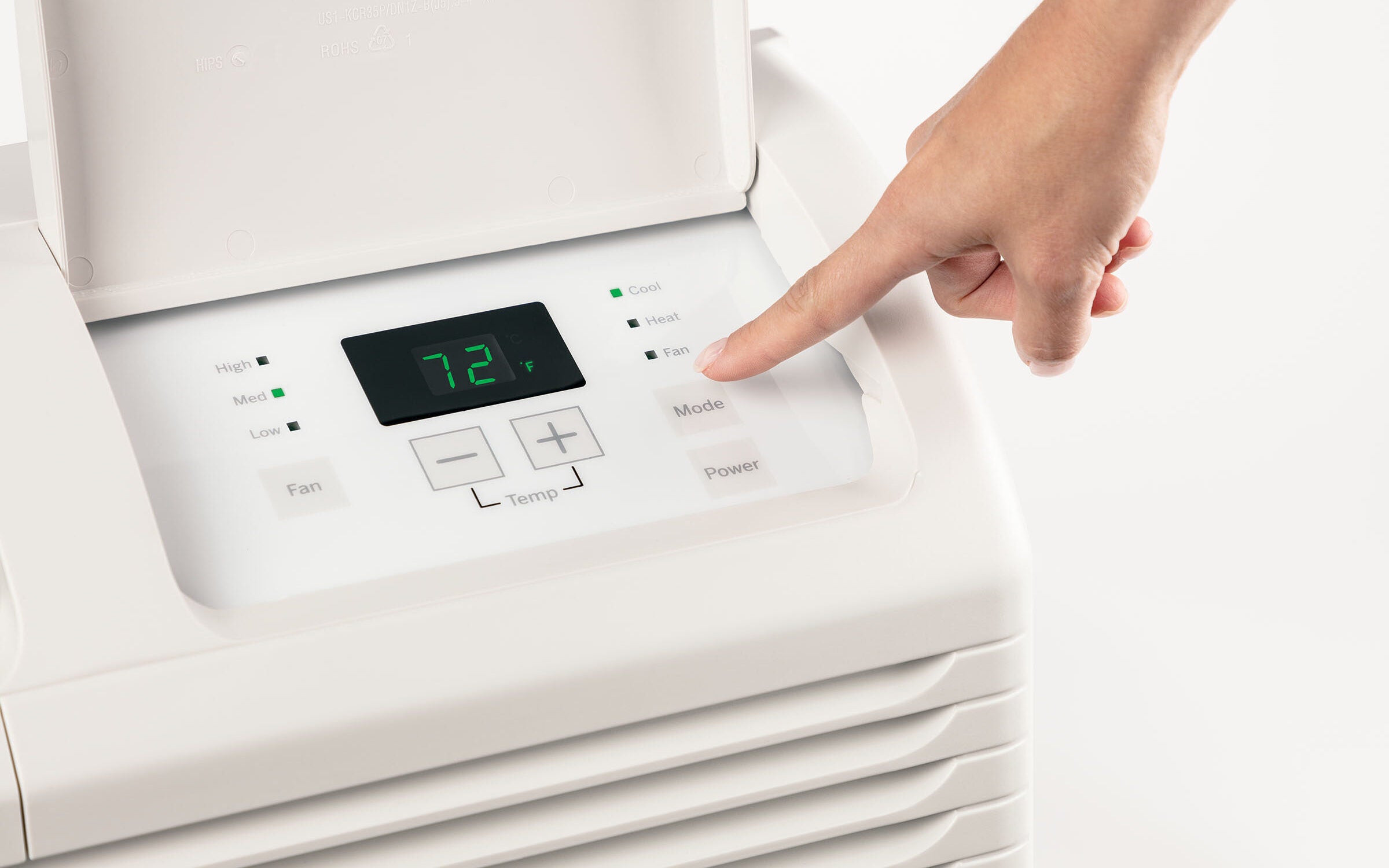

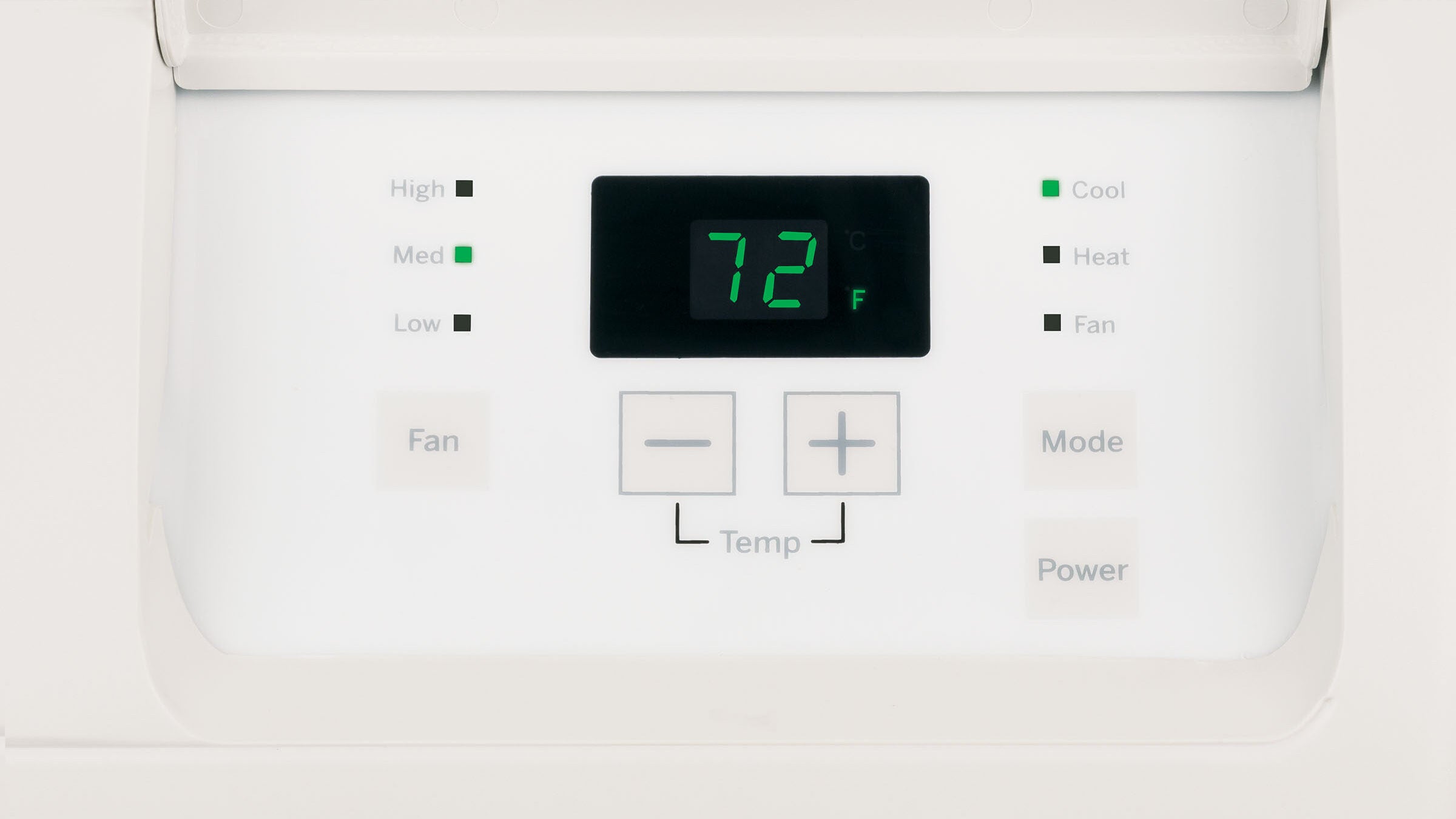

• Intuitive displayAllow guests to easily customize their preferred settings and reduce maintenance calls with an easy-to-use control panel
• Power cord (LCDI) includedHotpoint PTACs come with everything needed for a quick and easy installation
• Automatic emergency heatKeep guests comfortable with a heating option that uses electric resistance heat in heat pump mode

• Freeze and frost protectionAutomatic freeze and indoor frost control keep units operating in peak condition
• Auto power recoveryIn case of power failures, units automatically resume their operation when power restores, reducing maintenance calls
• Self diagnosticsQuickly and easily identify service needs with a nine-point diagnostic code system
• Limited 1-year parts and labor entire appliance warranty / limited 5-year refrigerating system warrantyEnjoy peace of mind knowing that all purchases are backed by the trusted Hotpoint service network
• Remote thermostat compatibility
• Works with central desk control systems
• Tangential fan for air flow and smooth sound

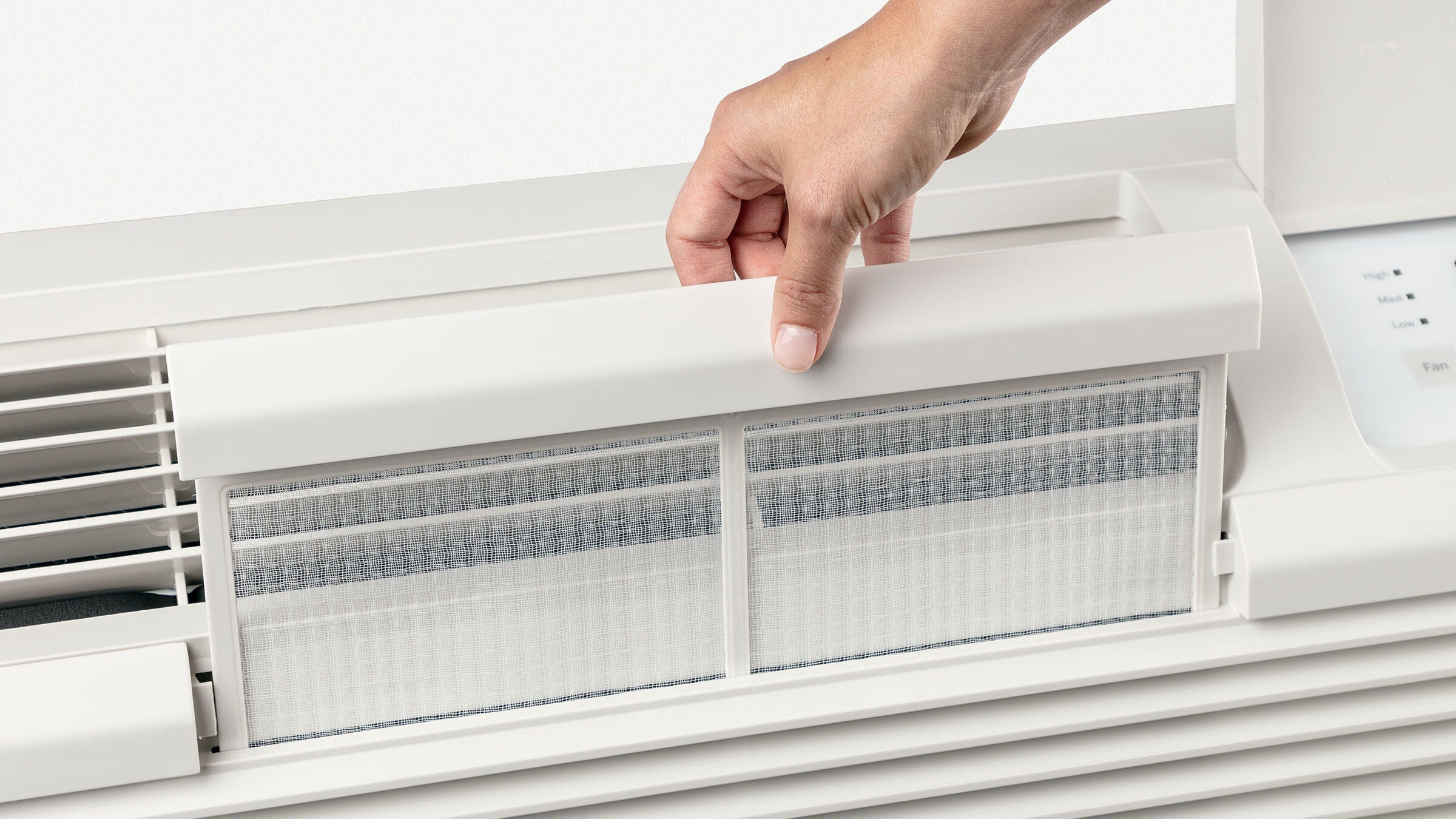

• Removable filters for easy maintenance
  APPROX. DIMENSIONS (HxWxD)

  16 H x 42 W x 21 D

  Product Specifications

  Category	Details
  Control Type	Electronic
  Product Type	Packaged Terminal Air Conditioners (PTAC)
  Refrigerant Type	R410A
  Temperature Range	62 - 86 °F
  Fan Speed Selections	3 Cooling, 3 Fan Only, 3 Heating
  Unit Features	Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel, Power Cord (LCDI) Included, Remote Thermostat Compatibility
  Auto Power Recovery	Yes

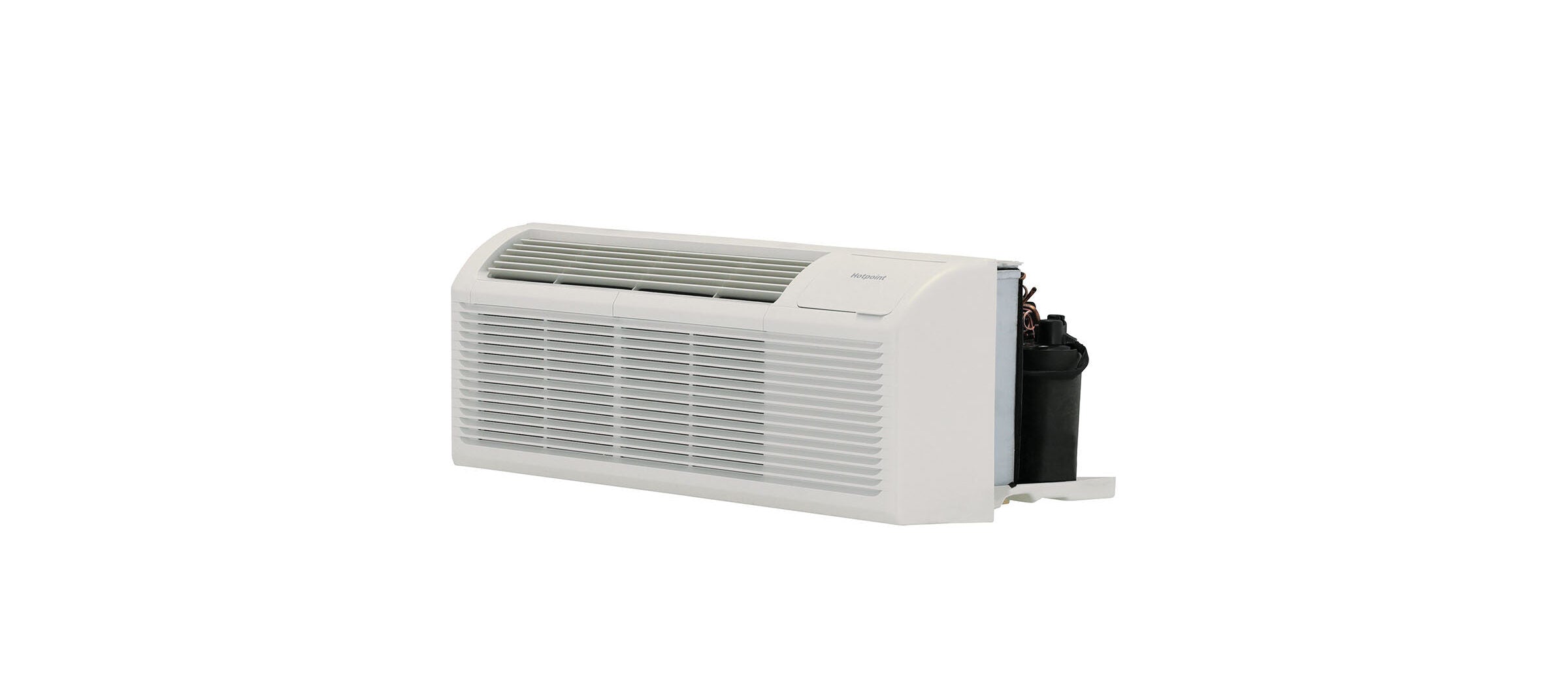

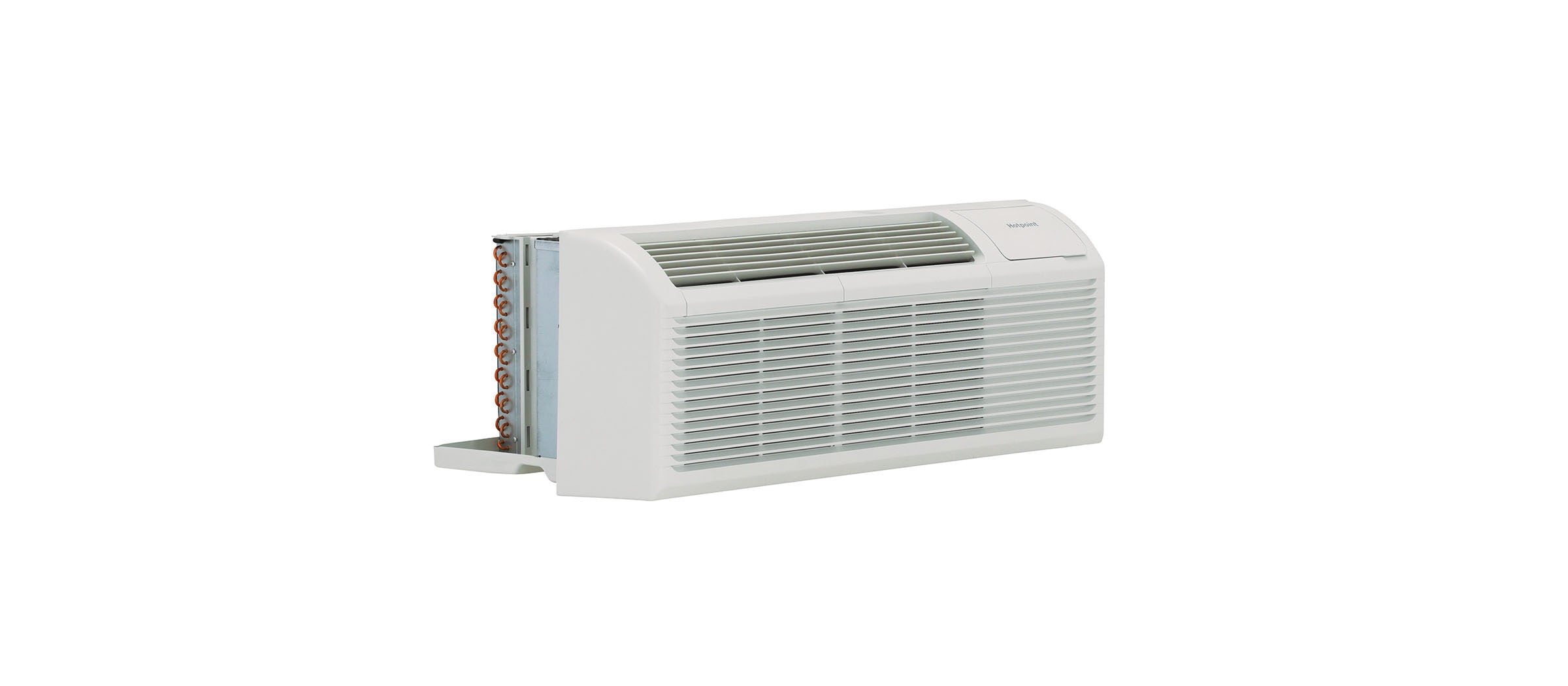

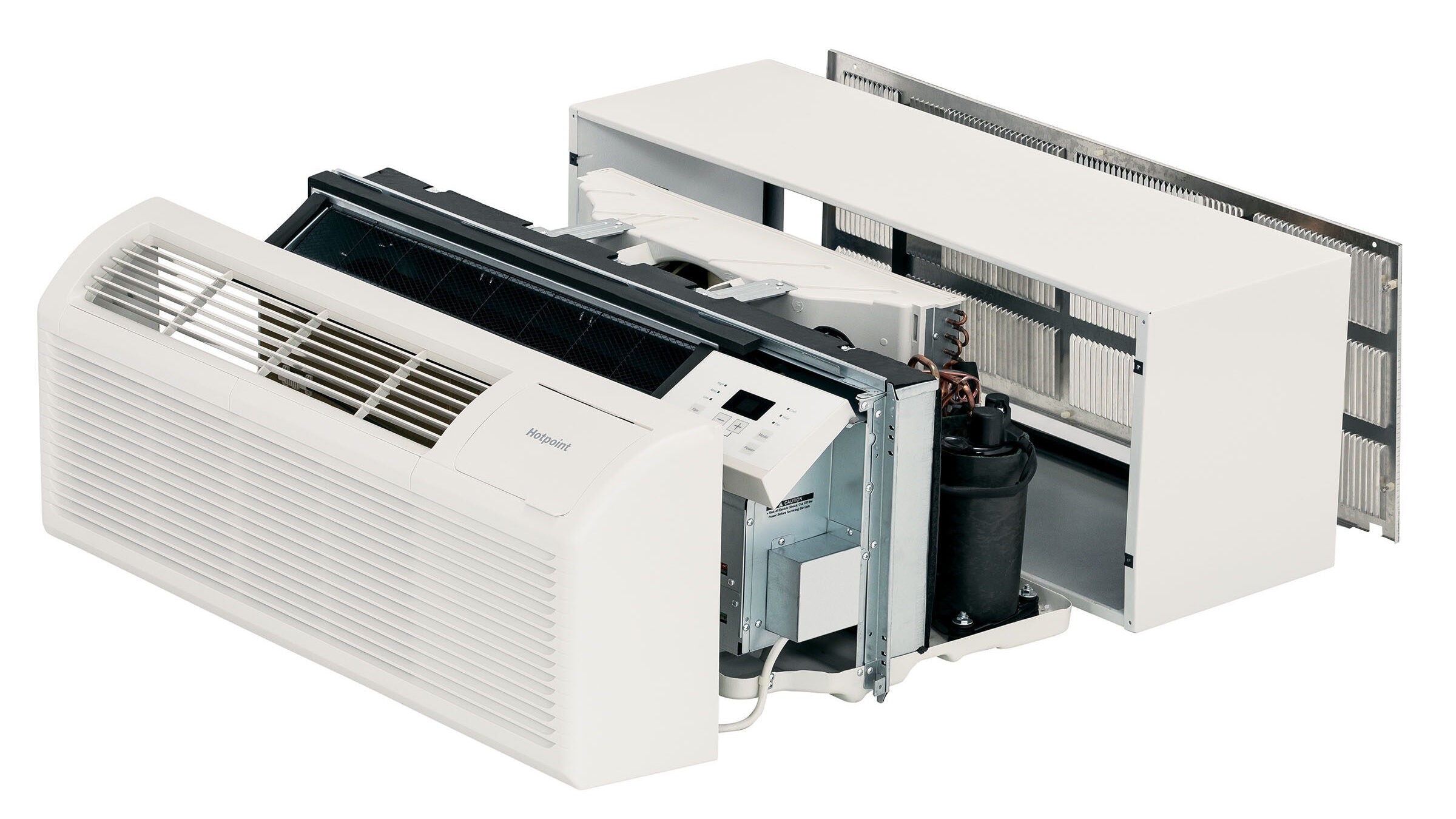

  Chassis Type	Slide-In
  Heat - Cool	Yes
  Manual Vent Control	Hidden
  Outdoor Vent / Exhaust	Yes
  Rotary Compressor	Yes
  Venting Features	Concealed Manual Vent Control, Vent Air Filter
  SmartFan Fan Cycle	Yes
  Discharge Grille	2-position
  Fan Motor	2
  Heating System	Electric Resistance
  CFM Indoor Fan - High	334
  CFM Indoor Fan - Medium	280
  CFM Indoor Fan - Low	236
  Cooling EER (BTUH/Watt)	11.9
  Cooling BTUH (Max)	7200.0 Btu
  Cooling BTUH (Min)	7000.0 Btu
  Installation	Through-the-Wall
  Color Appearance	White
  Overall Depth	21 in
  Overall Height	16 in
  Overall Width	42 in
  Shipping Weight	124 lb
  Net Weight	99.2 lb
  Heater Watts (Electric)	3535 / 2935
  Heater Amps (Electric)	15.3 / 13.7
  Cooling Amperes (F.L.)	2.7 / 2.9
  Cooling Watts	605 / 585
  Cooling Amperes	2.45 / 2.6
  Voltage Max	230.0 V
  Voltage Min	208.0 V
  Labor Warranty	Limited 1-year entire appliance, Limited 5-year sealed refrigerating system
  Parts Warranty	Limited 1-year entire appliance, Limited 5-year sealed refrigerating system
  Warranty Notes	See written warranty for full details
