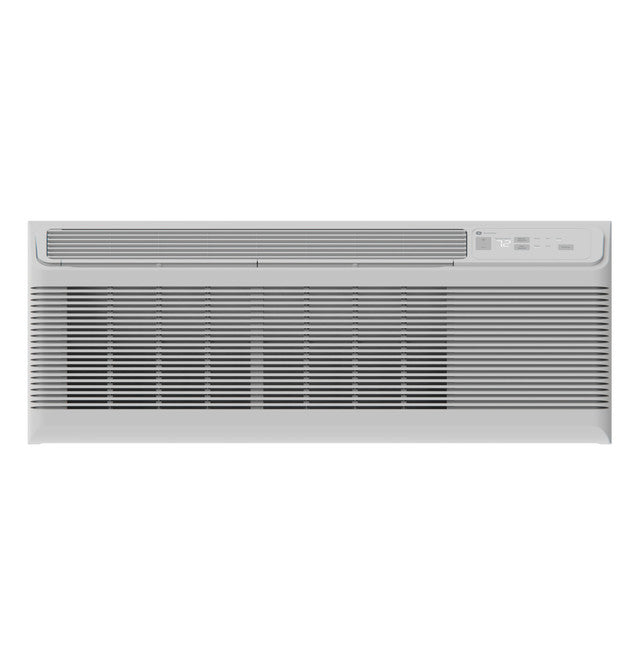

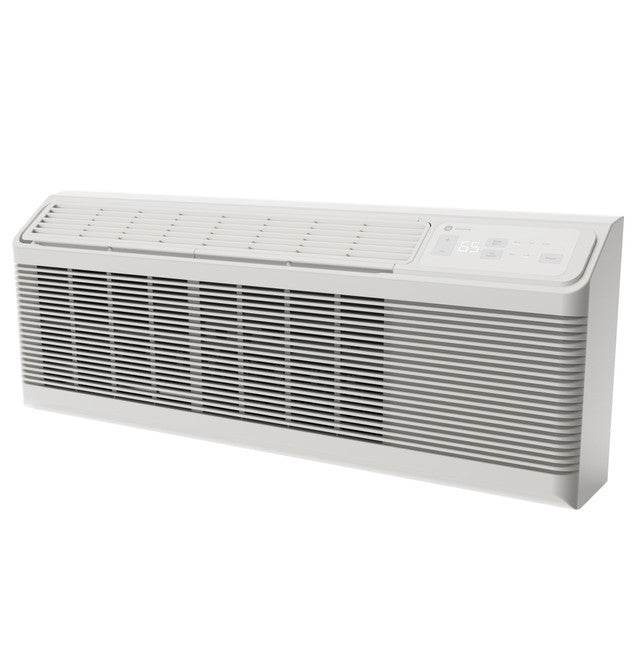

PTAC Unit With Heat Pump Fixed Speed Unit with Corrosion Protection 12,000 BTU, 265 Volt

 12,000 BTU Fixed-Speed Heat Pump with Corrosion Protection, 265V

The 12,000 BTU PTAC Heat Pump is an energy-efficient, fixed-speed unit designed for long-lasting performance and year-round comfort. Built with a slide-in corrosion-resistant chassis, this unit combines reliable cooling and heating with smart controls and quiet operation—making it ideal for hotels, multi-family housing, and commercial spaces.

With a microcomputer control system, intuitive LED touchpad, and features like Freeze Sentinel, Heat Sentinel, and Auto Power Recovery, this PTAC unit is engineered to deliver optimal temperature control in any season. The use of eco-conscious R454B refrigerant and a high dehumidification rate makes it both environmentally responsible and highly effective in humid conditions.

Key Features:

• Cooling Capacity: 10,500 – 12,000 BTU with 11.4 EER

• Heating Capacity: 10,500 BTU (reverse cycle with backup electric resistance heat)

• Dehumidification: 3.0 pints/hour (high fan speed)

• Fan Speeds: High/Low for Cooling, Heating, and Fan-Only Modes

• Air Circulation:

  • Indoor Fan: 440 CFM (High), 305 CFM (Low)

  • Vent CFM (Zero ESP): 43.2

• Smart Controls:

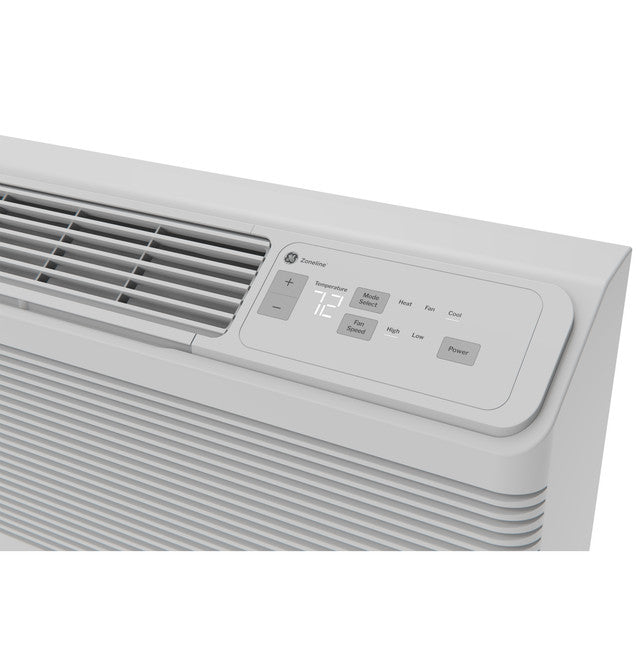

  • Standard Microcomputer with LED touchpad

  • Electronic 24-step temperature limiting

  • Freeze Sentinel & Heat Sentinel

  • Automatic Indoor Frost Control

  • Smart Fan Cycle

  • Auto Power Recovery

• Remote & Central Control Compatible:

  • Remote Thermostat

  • Central Desk Control System

• Durability & Design:

  • Slide-in chassis with corrosion-treated surface

  • Concealed 3-position manual vent

  • Rigid Frame, slide-out air filter for easy maintenance

• Eco-Friendly Refrigerant: R454B (32 oz charge)

Technical Specifications:

• Compressor Type: Rotary

• Sensible Heat Ratio: 0.75

• Voltage: 265V

• Cooling Power Usage: 1045 Watts / 4.4 Amps

• Heating Power Usage (Reverse Cycle): 860 Watts / COP: 3.6

• Electric Heater Amps: 3.7

Physical Dimensions & Weight:

• Overall Size: 16" H × 42" W × 20 13/16" D

• Net Weight: 104 lbs (Shipping: 114 lbs)

• Color: Grey White

• Chassis Type: Slide-In

Required Accessories:

• Wall Case: RAB42

• Outdoor Grille

Warranty:

• 1-Year Full Unit Warranty (Parts & Labour)

• 5-Year Sealed Refrigeration System Warranty (Parts & Labour)
