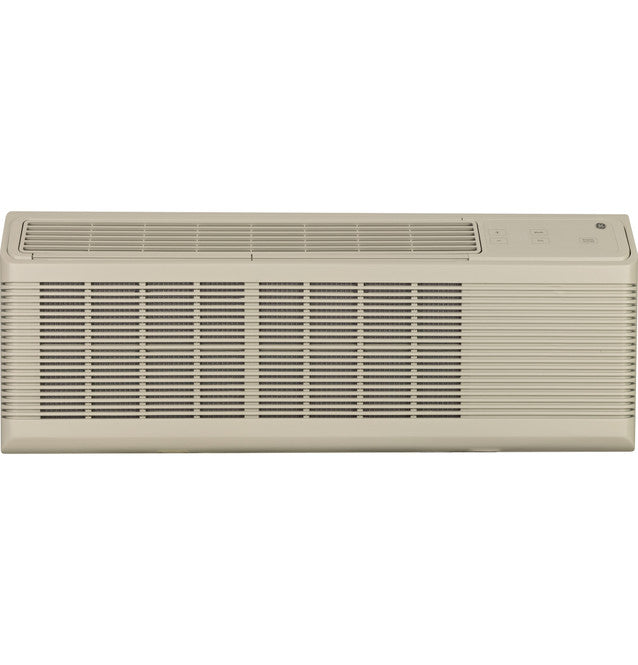

PTAC With Heat Pump Unit 12,000 BTU, 230/208 Volt

PTAC With Heat Pump – 12,000 BTU, 230/208V Power Supply

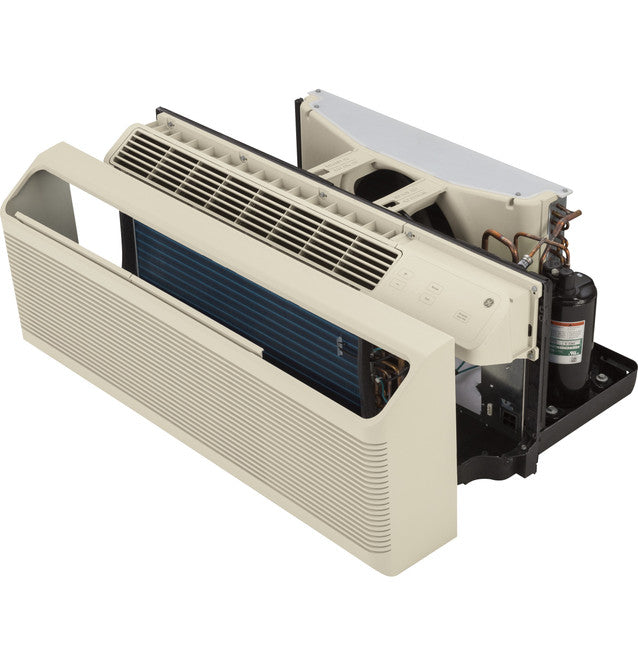

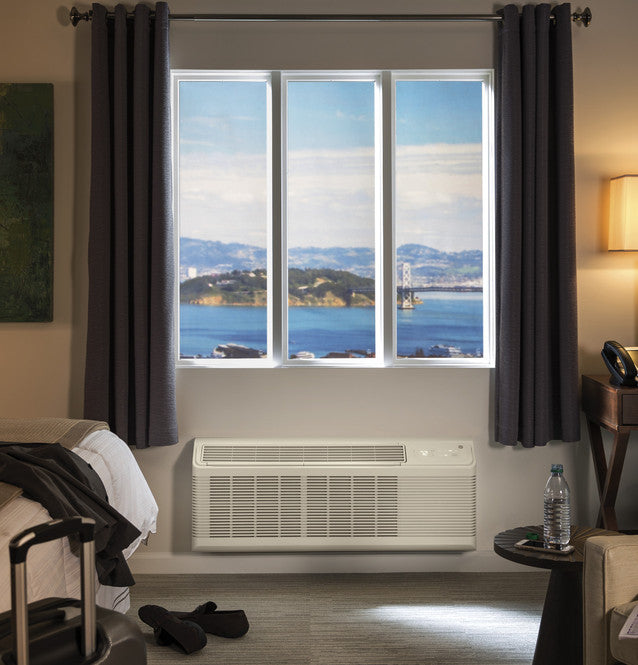

This advanced Packaged Terminal Air Conditioner (PTAC) unit is designed to deliver year-round comfort with reliable cooling and heating performance. With a sleek grey finish, slide-in chassis, and a user-friendly tactile touch pad featuring an LED display, this unit is ideal for commercial or residential settings such as hotels, apartments, or offices. It uses environmentally friendly R-410A refrigerant, offers efficient cooling with up to 11,900 BTU, and features a heat pump with resistance heat backup for quick and effective heating during colder months. With a compact design and robust features including auto power recovery, sleep mode, and electronic temperature limiting, this PTAC unit combines convenience, performance, and energy efficiency.

Key Features

• Cooling Capacity: 11,900/11,800 BTU (Max/Min)

• Heating Capacity: 10,500/10,400 BTU (Reverse Cycle)

• Dehumidification Rate: 3.7 pts/hr for enhanced comfort

• Energy Efficiency: Cooling EER of 11.6/11.8 and a COP of 3.6

• Airflow: Up to 410 CFM on high fan; 45 CFM vent

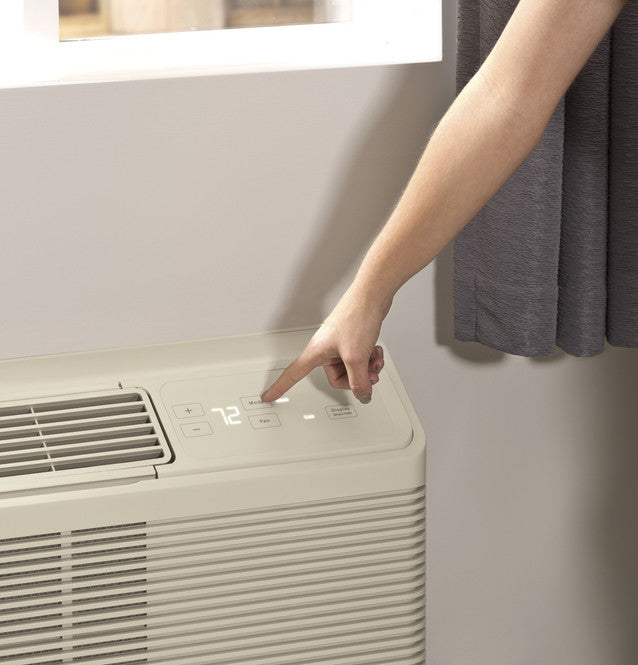

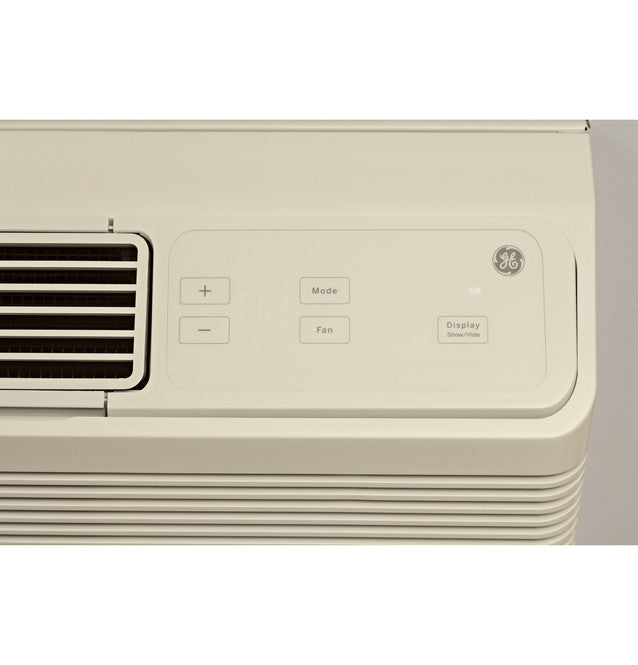

• Smart Controls: LED display with tactile touch pad and microcomputer control

• Fan Options: Hi/Low settings for cooling, heating, and fan-only operation

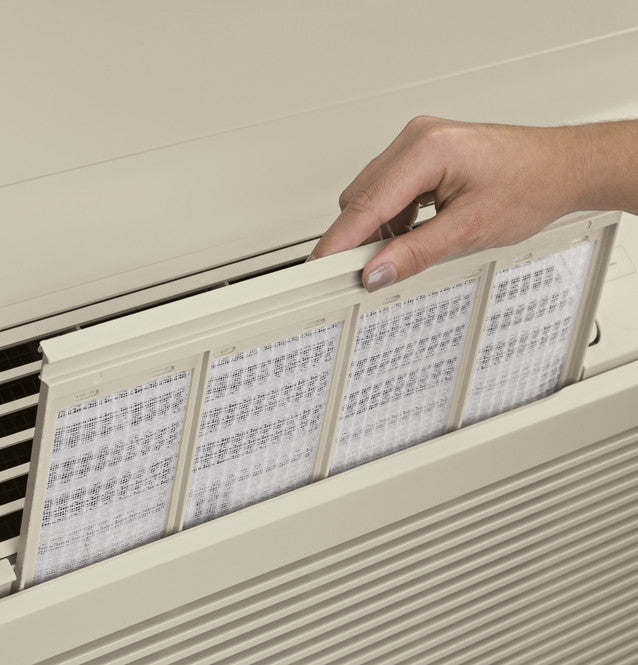

• Ventilation: 3-position manual vent with concealed control and air filter

• Safety & Comfort: Includes Auto Power Recovery, Freeze Sentinel, Sleep Mode, and Indoor Frost Control

• Power Requirements: Operates at 208/230V with low power consumption

• Dimensions: 16" H x 42" W x 20 13/16" D

• Weight: 110 lbs (shipping & net)
